Document Table of Contents Running System-In-the-Loop

This walkthrough uses a DSP Builder design that implements a primitive FIR filter with memory-mapped registers for storing coefficients

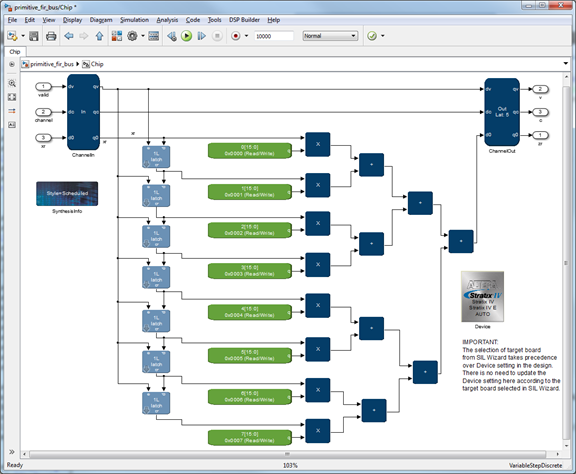

Figure 31. FIR Filter with Memory-Mapped Registers


  1. In the design’s Control block ensure you turn on Generate Hardware.
  2. Simulate the model to generate RTL.
  3. Select a device-level sub-system in your design and click DSP Builder > New SIL Wizard.
  4. On the Parameters tab, specify the parameters.
  5. Click the Run tab and specify the run parameters
