11.11.1. Enabling the Efficiency Monitor in a Design Example

To enable the Efficiency Monitor, follow these steps.
In the Performance group on the Diagnostics tab in the parameter editor, set Efficiency Monitor Mode to one of the following values:
  • Export: Allows you to connect your own RTL logic to control the Efficiency Monitor and read status registers.
  • Interface to Efficiency Monitor Toolkit: Allows use of the Unified Toolkit graphical user interface (in the System Console). Refer to Opening the Efficiency Monitor Toolkit for more information.

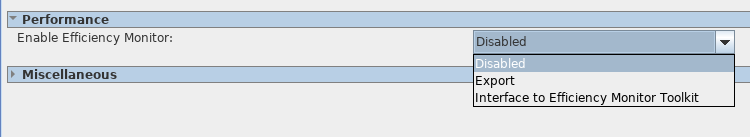

Figure 242. Efficiency Monitor Mode Setting
