11.7.4.1. Memory Configuration Tab

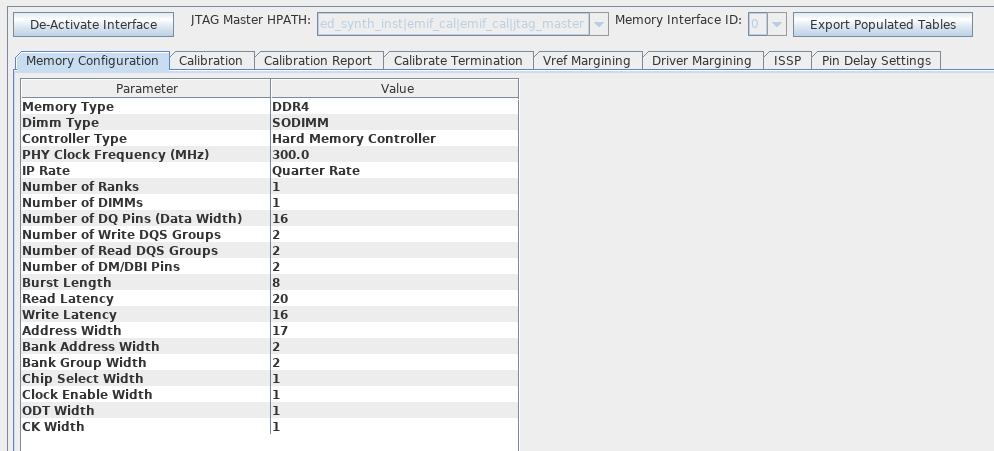

The Memory Configuration tab shows the IP settings, which were defined when you parameterized the EMIF IP.

Figure 170. Memory Configuration Tab
