4.7. Application Specific Design Example

This design example demonstrates the PHY Lite for Parallel Interfaces IP implementation for a NAND Flash design in Intel® Arria® 10 devices.

The following figure shows the RTL view of the design example.

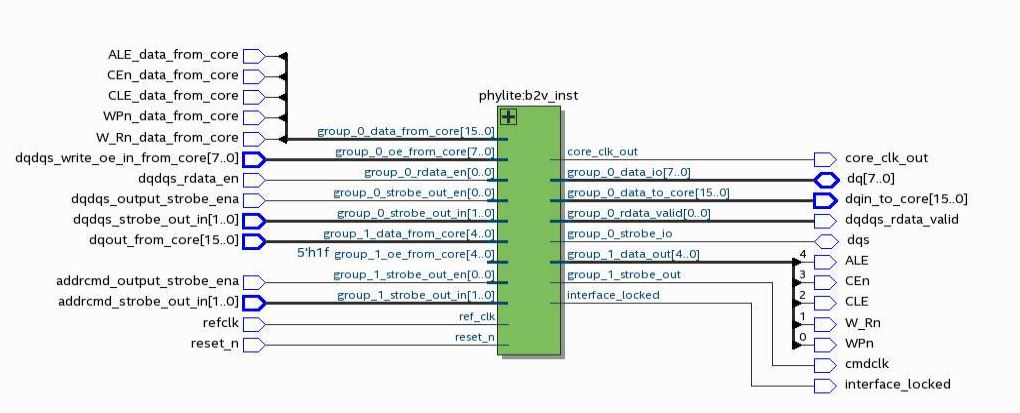

Figure 90.  RTL Viewer for a NAND Flash Simple Design Based on the PHY Lite for Parallel Interfaces IP
