33.2. Genlock Signal Router IP Parameters
The IP offers compile-time parameters.
| Parameter | Values | Description |
|---|---|---|
| Build configuration | ||
| Length of clock pulse | 1 to 32 | The number of clocks for the output genlock pulse |
| Number of genlock inputs | 1 to 32 | The number of input ports |
| Number of genlock outputs | 1 to 32 | The number of output ports |
| General-purpose input conduit | True or false | Turn on a general-purpose input port for this IP |
| Number of bits of GPI | 1 to 32 | The number of bits for the general-purpose input interface |
| General-purpose output conduit | True or false | Turn on a general-purpose output port for this IP |
| Number of bits of GPO | 1 to 32 | The number of bits for the general-purpose output interface |
| Genlock output type | Discrete timing signals, Clocks only | Select the type for all available outputs |
| Genlock Input Type: AXI-S FR (Per Input Interface) | ||
| Number of bits per color plane | 8 to 16 | The number of bits per color sample at the input |
| Number of pixels in parallel | 1 to 8 | The number of pixels transmitted every clock cycle. |
| Number of color planes | 1 to 4 | The number of color planes per pixel |
| AXI4-S FR interface TREADY | True or false | Enable the TREADY signal as part of the full-raster interface |
| Genlock Input Type: Discrete timing Clocked Video signals (Per Input Interface) | ||
| Clock | 0 to 1 | Discrete input interface has Input clock signal |
| F | 0 to 1 | Discrete input interface has Input field signal |
| V | 0 to 1 | Discrete input interface has Input vertical blanking signal |
| H | 0 to 1 | Discrete input interface has Input horizontal blanking signal |
| V sync | 0 to 1 | Discrete input interface has Input vertical sync signal |
| H sync | 0 to 1 | Discrete input interface has Input horizontal sync signal |
| Toggle | 0 to 1 | Discrete input interface has Input field pulse signal |
| Pulse | 0 to 1 | Discrete input interface has Input field toggle signal |

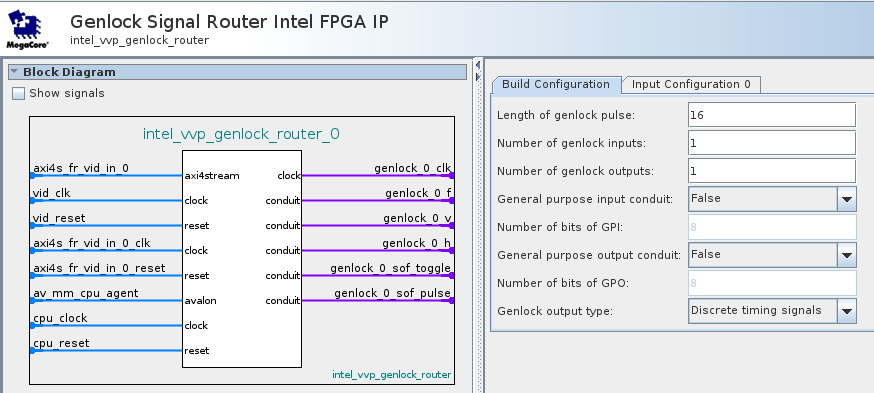

Figure 100. Genlock Signal Router IP GUI
