5.5.1.1. Enable Runtime Calibration Report

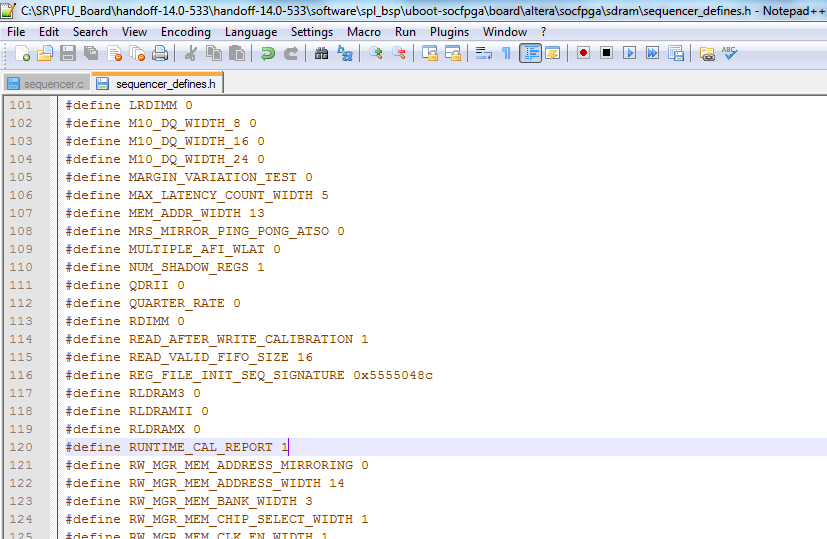

To enable the runtime calibration report, use your preferred editor to open the <project_folder>\software\spl_bsp\uboot-socfpga\board\altera\socfpga\sdram\sequencer_defines.h file and configure the RUNTIME_CAL_REPORT value to 1.
