1.16.7.1. Create the Memory System

This procedure creates a Platform Designer system to use as subsystem as part of a hierarchical instance parameter example.
  1. In Platform Designer, click File > New System.
  2. Right-click clk_0, and then click Remove.
  3. In the IP Catalog search box, type on-chip to locate the On-Chip Memory (RAM or ROM) component.
  4. Double-click to add the On-Chip Memory component to your system.
    The parameter editor opens. When you click Finish, Platform Designer adds the component to your system with default selections.
  5. Rename the On-Chip Memory component to onchip_memory_0.
  6. In the System View tab, for the clk1 element (onchip_memory_0), double-click the Export column.
  7. In the System View tab, for the s1 element (onchip_memory_0), double-click the Export column.
  8. In the System View tab, for the reset1 element (onchip_memory_0), double-click the Export column.
  9. Click File > Save to save your Platform Designer system as memory_system.qsys.

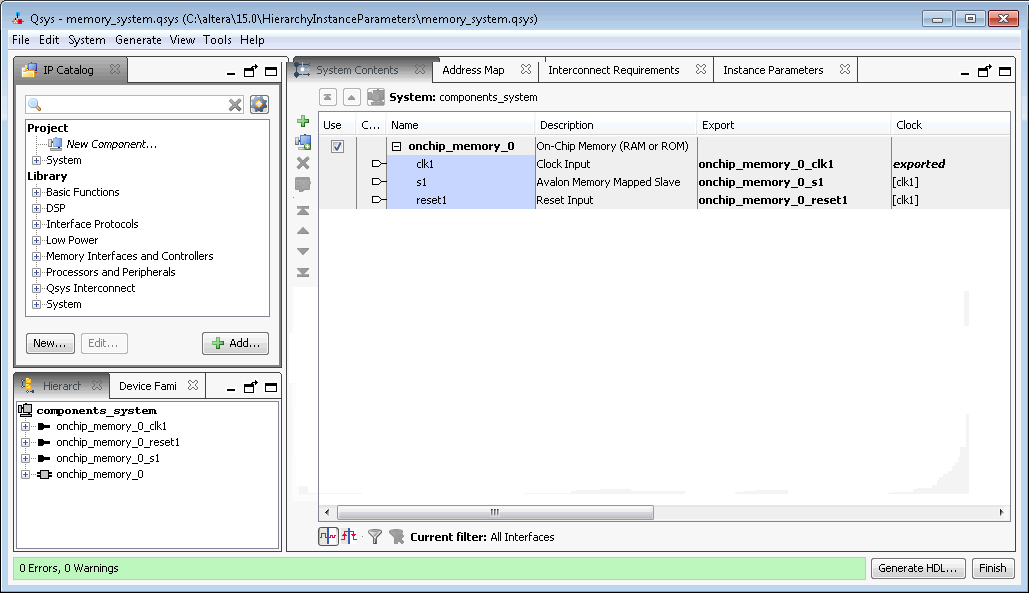

    Figure 37. On-Chip Memory Component System and Instance Parameters (memory_system.qsys)
