1.16.7.3. Create a Platform Designer Instantiating Memory System

This procedure creates a Platform Designer system to use as a higher-level system as part of a hierarchical instance parameter example.
  1. In Platform Designer, click File > New System.
  2. Right-click clk_0, and then click Remove.
  3. In the IP Catalog, under System, double-click memory_system.
    The parameter editor opens. When you click Finish, Platform Designer adds the component to your system.
  4. In the Systems Contents tab, for each element under system_0, double-click the Export column.
  5. Click File > Save to save your Platform Designer as instantiating_memory_system.qsys.

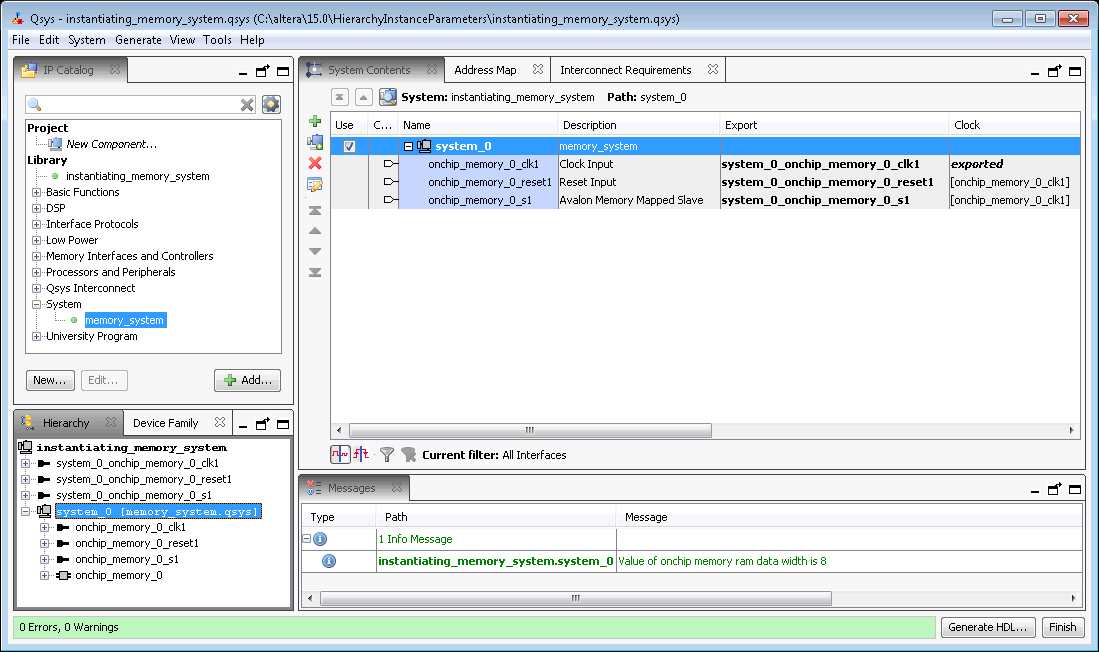

    Figure 40. Instantiating Memory System (instantiating_memory_system.qsys)
