1.16.1. Adding a Subsystem to a Platform Designer System

You can add a Platform Designer system as a subsystem (child) of another Platform Designer system (parent), at any level in the parent system hierarchy.
Follow these steps to add a subsystem to a Platform Designer system:
  1. Create a Platform Designer system to use as the subsystem.
  2. Open a Platform Designer system to contain the subsystem.
  3. On the System View tab, use any of the following methods to add the subsystem:
    • Right-click anywhere in the System View and click Add a new subsystem to the current system.
    • Click the Add a new subsystem to the current system button on the toolbar.
    • Press Ctrl+Shift+N.
  4. In the Confirm New System Name dialog box, confirm or specify the new system file name and click OK. The system appears as a new subsystem in the System View .

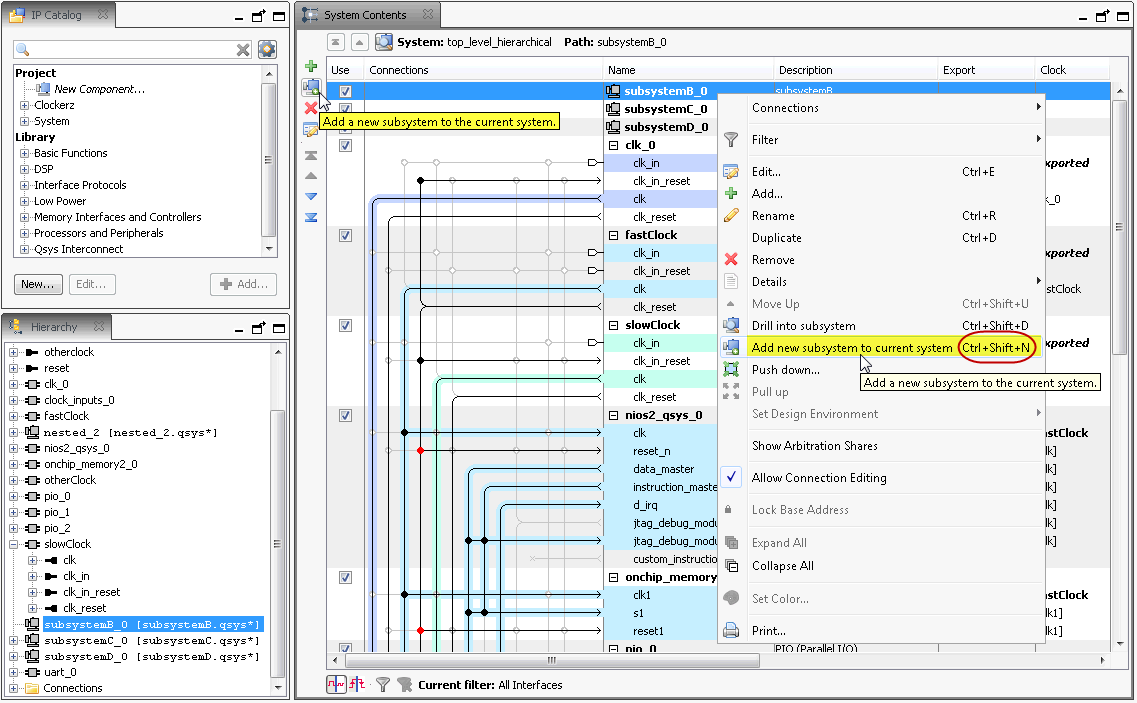

    Figure 34. Add a Subsystem to a Platform Designer Design
