5.1.12. Viewing Assignments in the Chip Planner

You can view location assignments in the Chip Planner by using the Assignment editing mode and the Floorplan Editing preset in the Layers Settings pane.

The Chip Planner displays assigned resources in a predefined color (gray, by default).

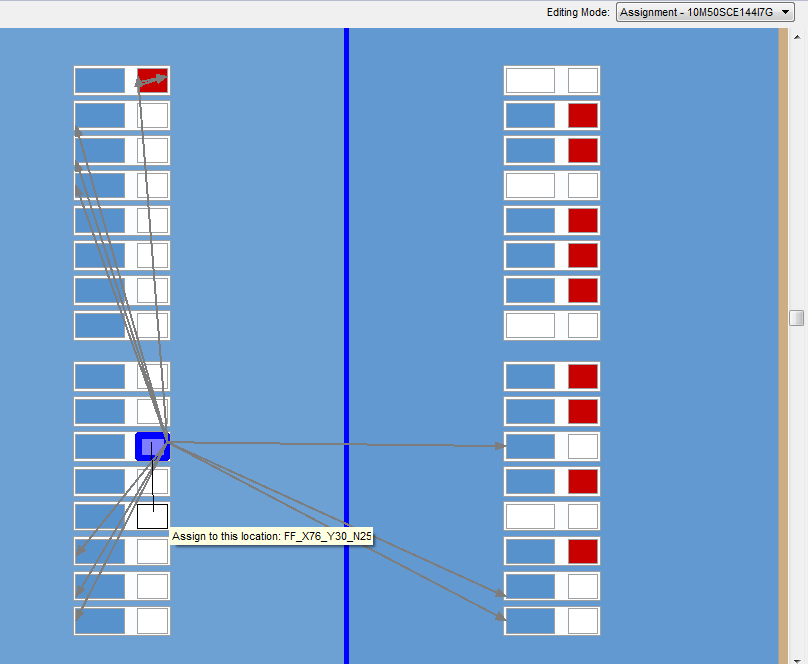

Figure 41. Viewing Assignments in the Chip Planner

To create or move an assignment, or to make node and pin location assignments to Logic Lock (Standard) regions, drag the selected resource to a new location. The Fitter applies the assignments that you create during the next place-and-route operation.
