2.6.2. Properties Pane
The Properties pane contains tabs with the following information about the selected node:
- The Fan-in tab displays theInput port and Fan-in Node.
- The Fan-out tab displays theOutput port and Fan-out Node.
- The Parameters tab displays the Parameter Name and Values of an instance.
- The Ports tab displays the Port Name and Constant value (for example, VCC or GND). The following table lists the possible values of a port:
The port is not connected and has VCC value (tied to VCC)
|GND||The port is not connected and has GND value (tied to GND)|
|--||The port is connected and has value (other than VCC or GND)|
|Unconnected||The port is not connected and has no value (hanging)|

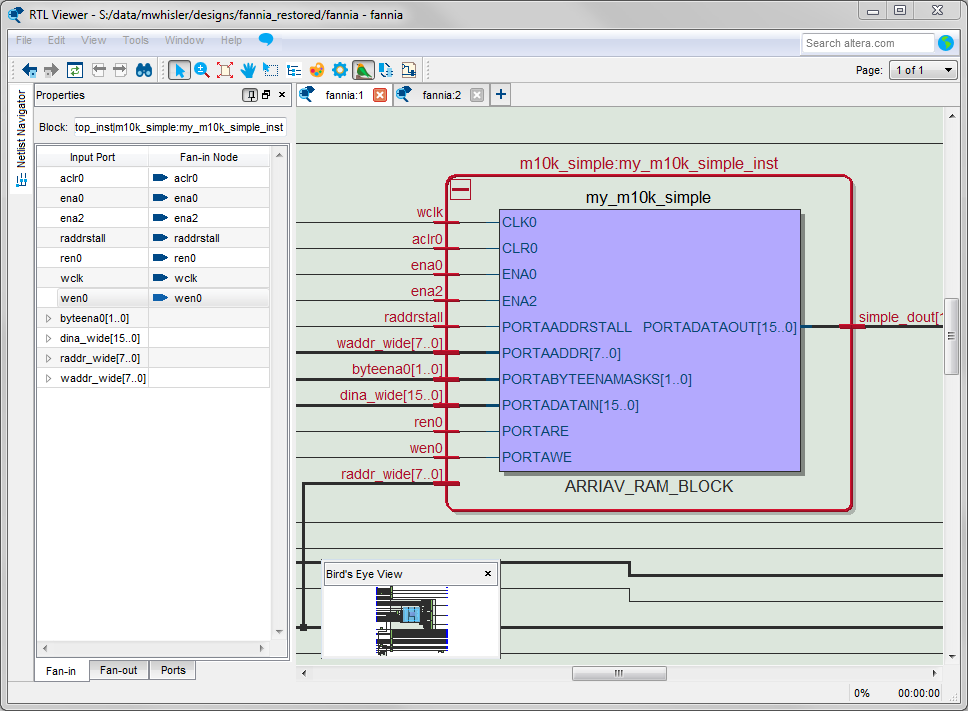

If the selected node is an atom primitive, the Properties pane displays a schematic of the internal logic.
