4.1.6. Analyze the Results of a Signal Probe Compilation

After a Signal Probe compilation, the results are available in the compilation report file. Each Signal Probe pin is displayed in the Signal Probe Fitting Result page in the Fitter section of the Compilation Report. To view the status of each Signal Probe pin in the Signal Probe Pins dialog box, on the Tools menu, click Signal Probe Pins.

The status of each Signal Probe pin appears in the Change Manager window. If the Change Manager window is not visible at the bottom of your GUI, from the View menu, point to Utility Windows and click Change Manager.

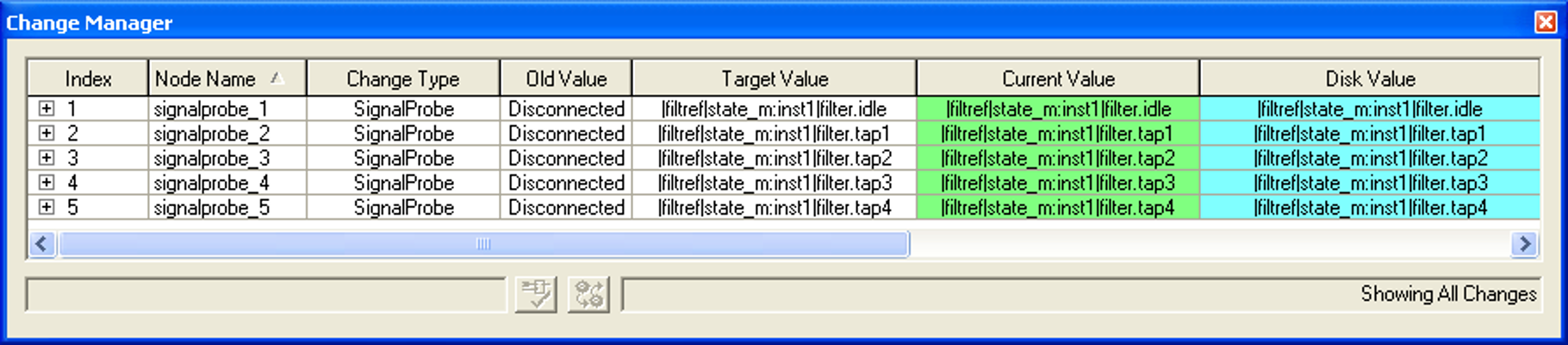

Figure 35. Change Manager Window with Signal Probe Pins

To view the timing results of each successfully routed Signal Probe pin, on the Processing menu, point to Start and click Start Timing Analysis.
