2.5. System Console GUI

The System Console GUI consists of a main window with multiple panes, and allows you to interact with the design currently running on the host computer.
  • System Explorer—Displays the hierarchy of the System Console virtual file system in your design, including board connections, devices, designs, and scripts.
  • Workspace—Displays available toolkits including the ADC Toolkit, Transceiver Toolkit, Toolkits, GDB Server Control Panel, and Bus Analyzer. Click the Tools menu to launch applications.
  • Tcl Console—A window that allows you to interact with your design using Tcl scripts, for example, sourcing scripts, writing procedures, and using System Console API.
  • Messages—Displays status, warning, and error messages related to connections and debug actions.

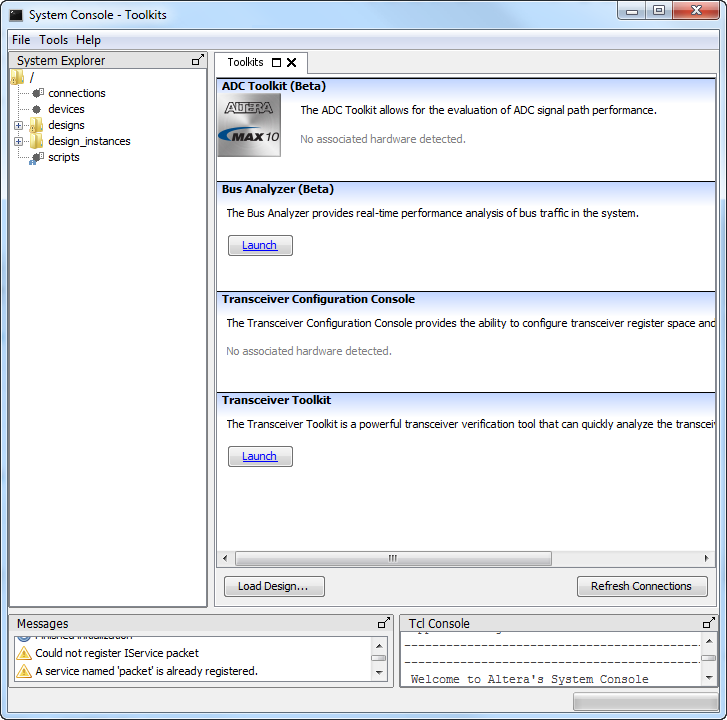

Figure 5. System Console GUI
