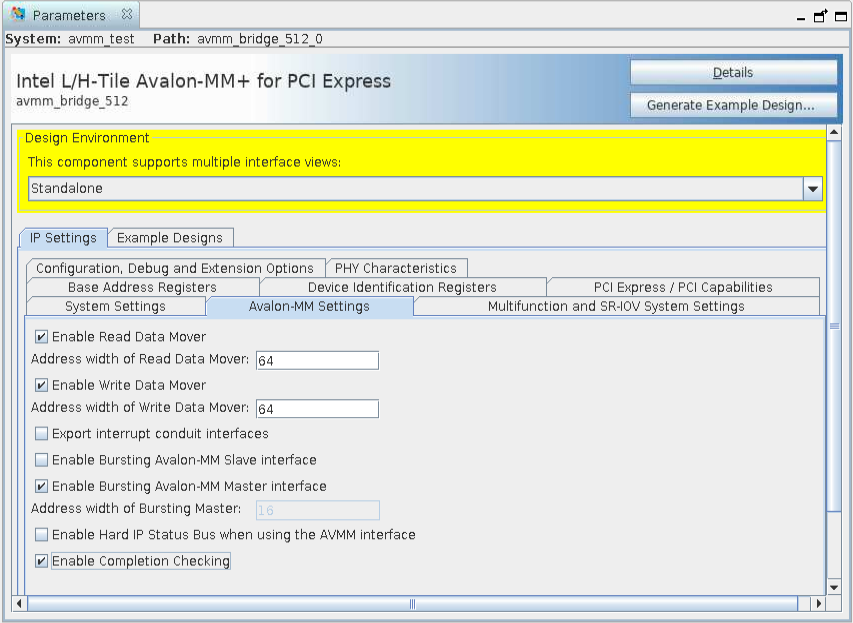

4.1. Avalon-MM Settings
|Enable Read Data Mover||On/Off||On||When On, the IP core includes the Read Data Mover.|
|Address width of Read Data Mover||10 - 64 bits||64 bits||Specifies the address width for the Read Data Mover.|
|Enable Write Data Mover||On/Off||On||When On, the IP core includes the Write Data Mover.|
|Address width of Write Data Mover||10 - 64 bits||64 bits||Specifies the address width for the Write Data Mover.|
|Export interrupt conduit interfaces||On/Off||Off||When On, the IP core exports internal interrupt signals to the top-level RTL module. The exported signals support legacy interrupts.|
|Enable bursting Avalon-MM Slave interface||On/Off||Off||When On, the high performance Avalon-MM Slave interface is enabled. This interface is appropriate for high bandwidth applications such as transferring blocks of data. The maximum burst count supported is 8.|
|Address width of bursting Slave||10 - 64 bits||64 bits||Specifies the address width for the high performance Avalon-MM Slave interface. This parameter is accessible only after the high performance bursting Avalon-MM Slave interface is enabled.|
|Enable bursting Avalon-MM Master interface||On/Off||On||When On, the high performance Avalon-MM Master interface is enabled. This interface is appropriate for high bandwidth applications such as transferring blocks of data. The maximum burst count supported is 8.|
|Enable hard IP status bus when using the Avalon-MM interface||On/Off||Off||When you turn this option On, your top-level variant includes signals that are useful for debugging, including link training and status, and error signals. The following signals are included in the top-level variant:
|Enable Completion Checking||On/Off||Off||
With this option On, when the Read Data Mover in the IP core issues an upstream Read to the host and the host does not return a completion after a time period exceeding the completion timeout value specified in a PCIe Hard IP Configuration register, the output rddm_tx_data_o is asserted to indicate a completion timeout error. No associated data is returned to the Read Data Mover for the descriptor that corresponds to the completion timeout error.
If an external Avalon® -MM Master issues a Read request to the BAS interface (which the BAS interface then forwards to the host), and a completion timeout happens, the BAS interface will respond to the Avalon® -MM Master with dummy data and set the outputs bas_response_o[1:0] to 2'b10 to indicate an unsuccessful completion.
The possible encodings for bas_response_o[1:0] are:
