9.1.7. Connecting the ALU Folding Ready Signal


Connect a Ready block from the Primitive library to the ChannelOut block.

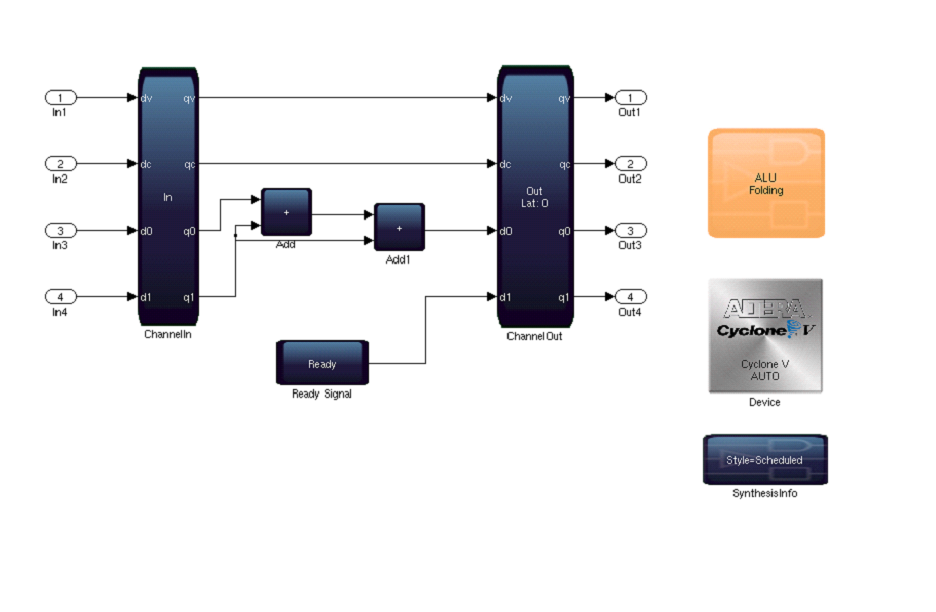

Figure 88. Connecting Ready Block
