Nios® V Embedded Processor Design Handbook

ID 726952
Date 5/13/2024
Document Table of Contents Programming Files Generation

JTAG Indirect Configuration File (.jic) Generation

  1. In the Quartus® Prime software, go to File > Convert Programming Files.
  2. For Programming file type, select JTAG Indirect Configuration File (.jic)
  3. For Mode select Active Serial x4.

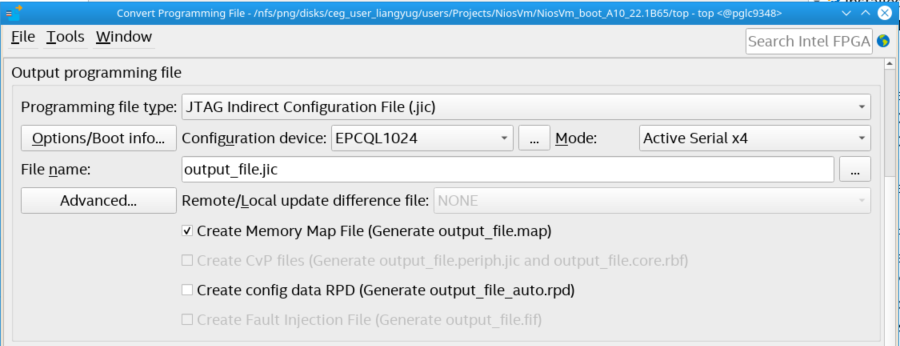

    Figure 29. Convert Programming File Window
  4. Click “…” to enter the Configuration Device tab and select the available options. The Configuration Device allows for choosing a specific supported device or alternatively an unsupported device.

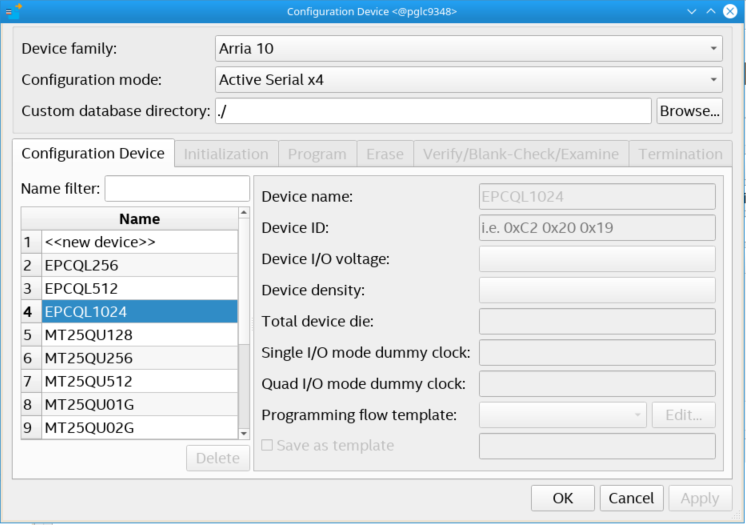

    Figure 30. Configuration Device Window
  5. If you are using a supported device, make your selection, and click OK. Else, proceed with the following steps:
    1. Select <<new device>>.

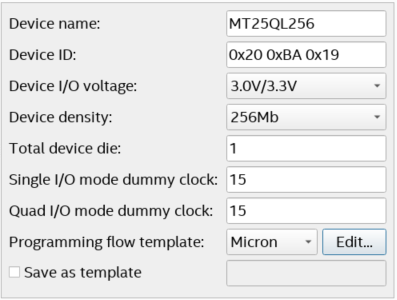

    2. Enter the information about Device name, Device ID, Device I/O voltage, Device density, Total device die, Dummy clock (Single I/O or Quad I/O mode) and Programming flow template.
    3. Click Apply.
      Note: The Programming flow template helps you define a template for flash operation in Initialization, Program, Erase, Verify/Blank-Check/Examine and Termination. If the device is not available for selection, refer to Modifying Programming Flows in Generic Flash Programmer User Guide to modify the programming flow. For details about memory parameters like dummy clock cycles, please contact the related vendor.
  6. Under the Input files to convert tab,
    1. Choose the Flash Loader for the FPGA used by selecting Flash Loader and click Add Device.
    2. Add the .sof file to the SOF Data by selecting SOF Data and click Add File.
    3. Click Add Hex Data to add Nios® V application (.hex) file. Select the Absolute addressing and Big-endian button. Browse to the .hex file location. Click OK.
  7. Click Generate to generate the JIC file.

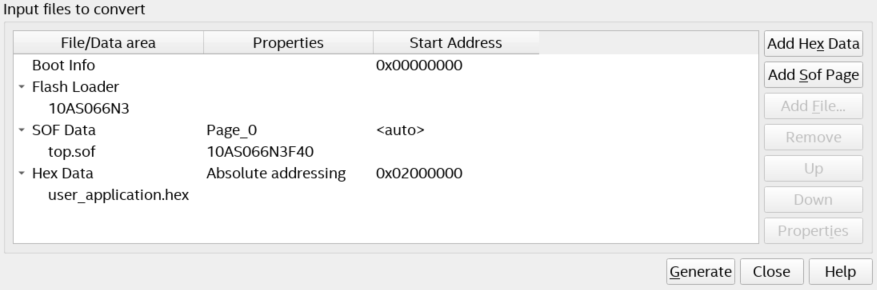

Figure 31. Input files to convert tab
