4.4.10. The EEPROM Tab

This tab allows you to read EEPROM and set Board information to EEPROM.

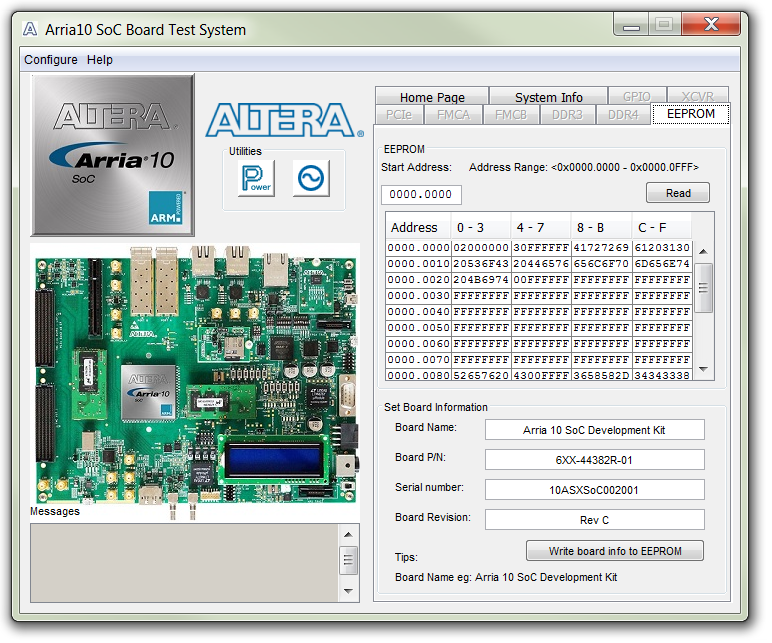

Figure 27. The EEPROM Tab

Read

Reads data from EEPROM.

Write board info to EEPROM

Writes board information (board name, board P/N, Serial Number, Board Revision) into EEPROM.
