14.1.2. Directory Structure for the Generated Design Example

Below is the directory structure for the generated Root Port design example:

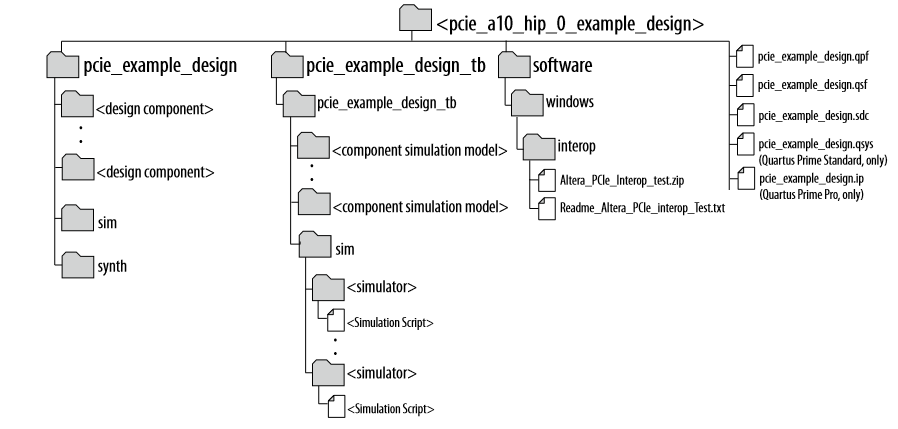

Figure 64. Directory Structure for the Design Example
