A.2.4.2.1. Agilex™ 5 Information
This lists a summary of the GTS AXI Streaming IP parameter settings in the GTS AXI Streaming IP parameter editor when the IP was generated, as read by the Agilex™ 5 Debug Toolkit when initialized.
All the information is read-only.
Use the Refresh button to read the settings.
Parameter | Values | Descriptions |
---|---|---|
Intel Vendor ID | 1172 | Indicates the Vendor ID as set in the IP Parameter Editor. |
Device ID | 0 | This is a unique identifier for the device that is assigned by the vendor. |
Protocol | PCIe | Indicates the Protocol. |
Port Type | Root Port, Endpoint 3 | Indicates the Hard IP Port type. |
Intel IP Type | intel_pcie_gts | Indicates the IP type used. |
Advertised speed | 8.0GT, 16.0GT | Indicates the advertised speed as configured in the IP Parameter Editor. |
Advertised width | x4 | Indicates the advertised width as configured in the IP Parameter Editor. |
Negotiated speed | 2.5GT, 5.0GT, 8.0GT, 16.0GT | Indicates the negotiated speed during link training. |
Negotiated width | x4, x2, x1 | Indicates the negotiated link width during link training. |
Link status | Link up, link down | Indicates if the link (DL) is up or not. |
LTSSM State | Refer to Hard IP Status Interface | Indicates the current state of the link. |
Lane Reversal | True, False | Indicates if lane reversal happens on the link. |
Retimer 1 | Detected, not detected | Indicates if a retimer was detected between the Root Port and the Endpoint. |
Retimer 2 | Detected, not detected | Indicates if a retimer was detected between the Root Port and the Endpoint. |
Tx TLP Sequence Number | Hexadecimal value | Indicates the next transmit sequence number for the transmit TLP. |
Tx Ack Sequence Timeout | Hexadecimal value | Indicates the ACK sequence number which is updated by receiving ACK/NAK DLLP. |
Replay Timer Timeout | Green, Red | Green: no timeout Red: timeout |
Malformed TLP Status | Green, Red | Green: no malformed TLP Red: malformed TLP detected |
First Malformed TLP Error Pointer |
|
|
PIPE PhyStatus |
0/1 |
Indicates the PMA and PCS are in reset mode. 0: PMA and PCS are out of reset 1: PMA and PCS are in reset |

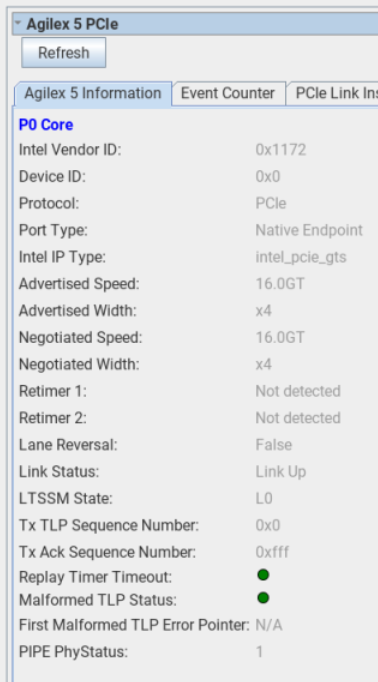

Figure 69. Example of Agilex™ 5 Parameter Settings
3 The current version of Quartus® Prime supports enabling the Debug Toolkit for Endpoint mode only, and for the Linux and Windows operating systems only.
