10.7.3.2. Running the Efficiency Monitor with the External Memory Debug Toolkit

To see the results compiled by the Efficiency Monitor using the EMIF Debug Toolkit, follow these steps.
  1. To launch the EMIF Debug Toolkit, select Tools > System Debugging Tools > External Memory Interface Toolkit.
  2. To view the statistics, perform the following:
    1. Initialize connections.
    2. Link the project to the device.
    3. Create the memory interface connection.
    4. Create the Efficiency Monitor connection.

The following images illustrate the Efficiency Monitor statistics and Protocol Checker Summary statistics available in the EMIF Toolkit.

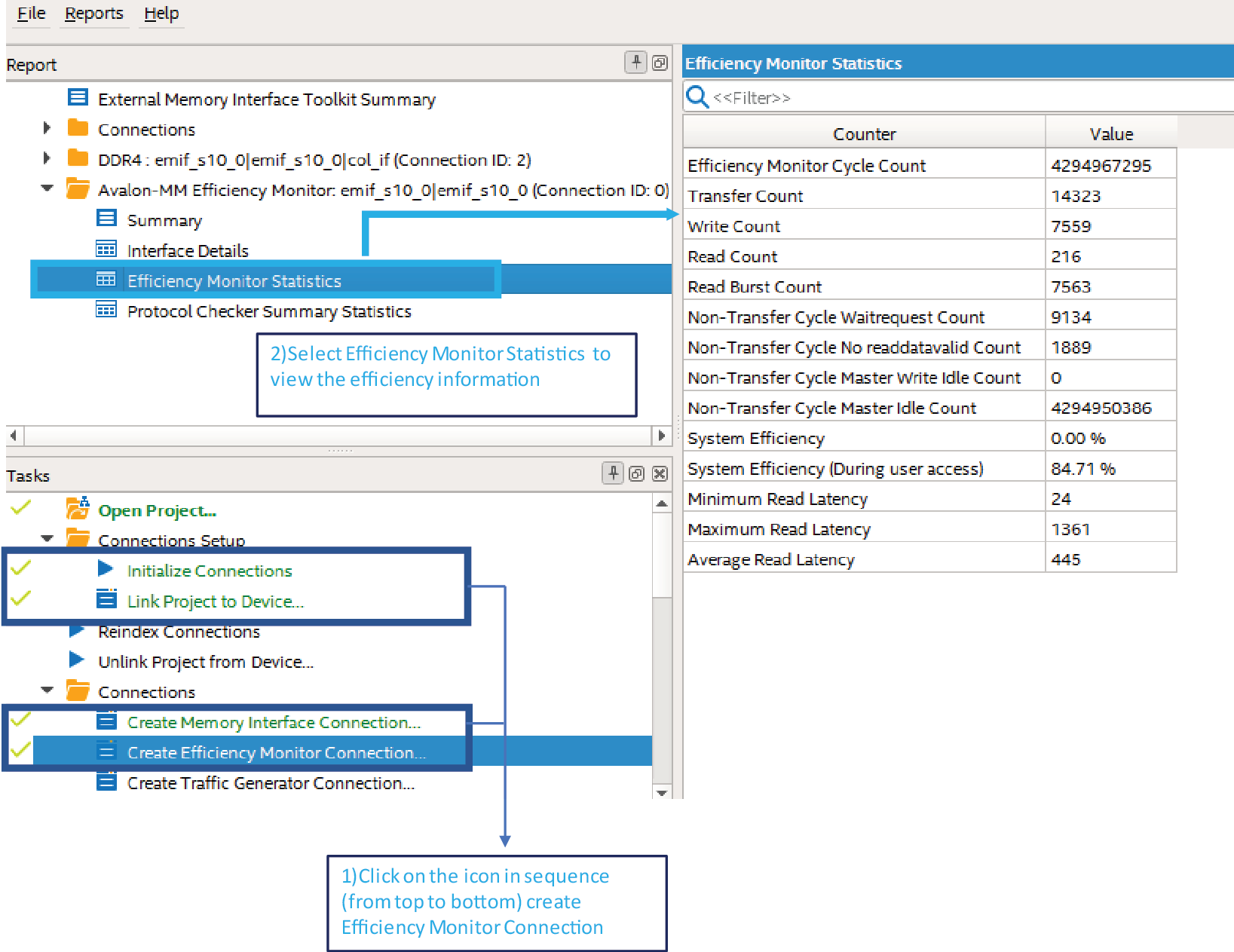

Figure 105.  Efficiency Monitor Statistics in the EMIF Toolkit

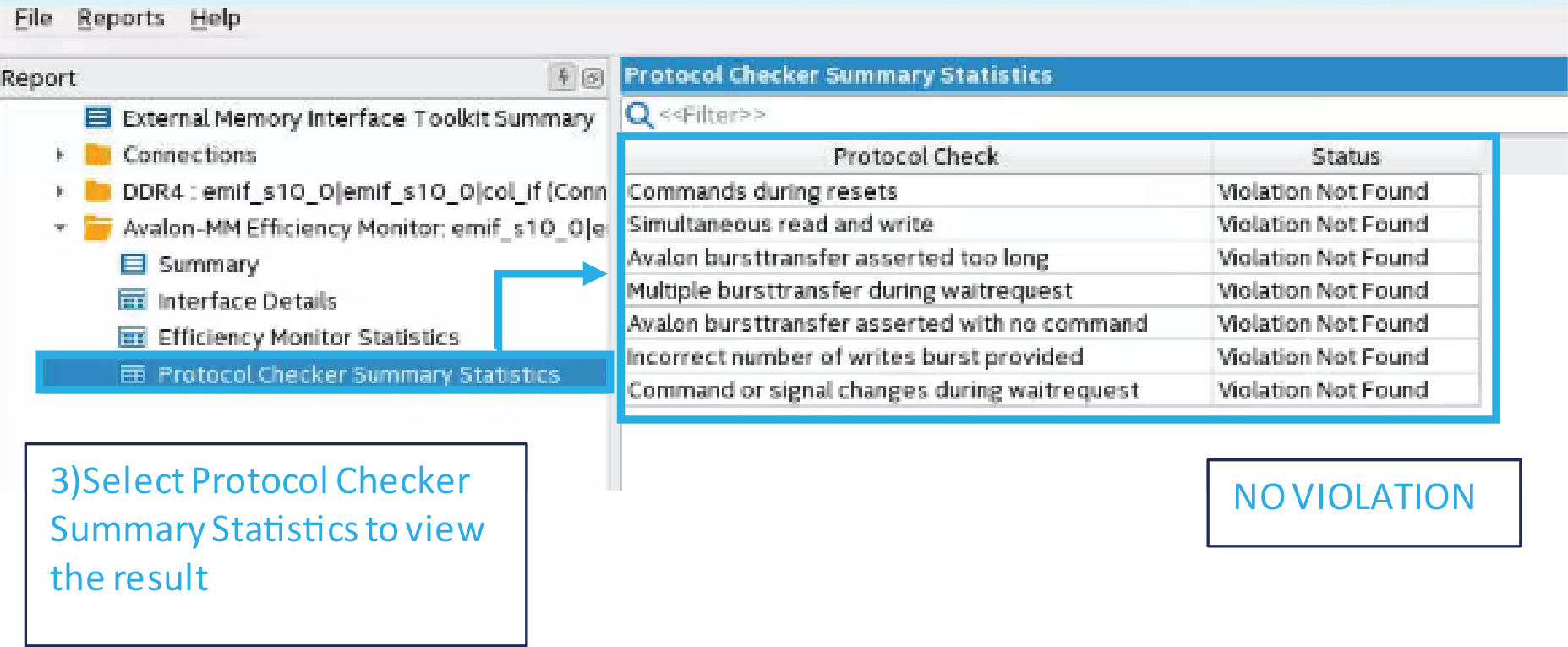

Figure 106. Protocol Checker Summary Statistics in the EMIF Toolkit
