18.2. Deinterlacer Parameters

The IP offers run- and compile-time parameters.
Table 276.  Deinterlacer Parameters
Parameter Values Description
Parameters
Deinterlacing mode Bob or Weave Select bob or weave deinterlacer.
Video Data Format
Bits per color sample 8 to 16 Select the number of bits per color sample.
Number of color planes 1 to 4 Select the number of color planes per pixel.
Number of pixels in parallel 1 to 8 Select the number of pixels in parallel.
Memory 42
Avalon memory- mapped host(s) local ports width 16, 32, 64, 128, 256, 512, 1024 Select in bits the width of the Avalon memory-mapped host read and write ports.
Avalon memory- mapped host(s) local ports address width 8to 32 Select in bits the width of the Avalon memory-mapped host read and write ports. It must be sufficient to fully address the last buffer.
The depth of the write FIFO 32, 64, 128, 256, 512, 1024, 2048 Select the depth of the write FIFO buffer. Each FIFO buffer entry holds one word the width of the specified Avalon memory-mapped local port width. You must specify a FIFO depth of at least twice the specified burst target so that at least 2 bursts can be held at any one time. Increase the FIFO depth to improve resilience to latency on the Avalon memory-mapped bus.
Avalon memory- mapped write burst target 2,4,8,16,32,64 Select the burst target for writes. Longer bursts provide more efficiency on the bus but require more local storage in the write FIFO buffer.
The depth of the read FIFO 32,64,128,256,512,1024,2048 Specify the depth of the read FIFO buffer. Each FIFO buffer entry holds one word the width of the specified Avalon memory-mapped local port width. You must specify a FIFO depth of at least twice the specified burst target so that at least 2 bursts can be held at any one time. Increase the FIFO depth to improve resilience to latency on the Avalon memory-mapped bus.
Avalon memory- mapped read burst target 2,4,8,16,32,64 Select the burst target for reads. Longer bursts provide more efficiency on the bus but require more local storage in the read FIFO buffer.
Field memory base address 0x0000_0000 – 0x7FFF_FFFF Select the base address for the field buffer to store field 0 or field 1.
Interline stride Depends on video frame format and maximum frame width. Set a stride (in bytes) large enough to separate lines of the specified maximum width. The GUI gives an error if the stride is too low.
Packing method Perfect,color or pixel Perfect packing minimizes memory footprint of stored fields but increases complexity and therefore size of the field buffer slightly. Color packing leaves spaces in memory between colors if colors do not pack into memory words exactly. Pixel packing leaves spaces in memory between pixels if pixels do not pack into memory words exactly.
Separate clock for the Avalon memory- mapped host interface(s) On or off A separate clock allows the control and data portions of the field buffer to run at their maximum clock frequencies. Turn on separate clocks for highest performance.
Control
Lite mode On or off Turn on to operate the deinterlacer in lite mode.
Memory-mapped control interface On or off

Turn on to read frame statistics and turn the deinterlacer on and off using an Avalon memory-mapped interface.

The memory-mapped control interface is mandatory in lite mode.

Separate clock for control interface On or off Turn on for a separate clock for the control interface.
Deinterlacer Behavior 43
Bob deinterlacing mode

DEINTERLACE_F0_ONLY,

DEINTERLACE_F1_ONLY,

DEINTERLACE_F0_AND_F1

Select to drop off F0 or F1 input fields.
Maximum Frame Size
Maximum field width 32 to 16384 Select the maximum field width to determine the size of the line buffer. Set this parameter to the line length of the widest fields you want to deinterlace. Progressive frames of any size pass through unchanged.
General
Debug features On or off Turn on to enable debug features (not applicable for lite mode).
Pipeline ready signals On or off Turn on to add extra pipeline registers to the AXI4-S tready signals

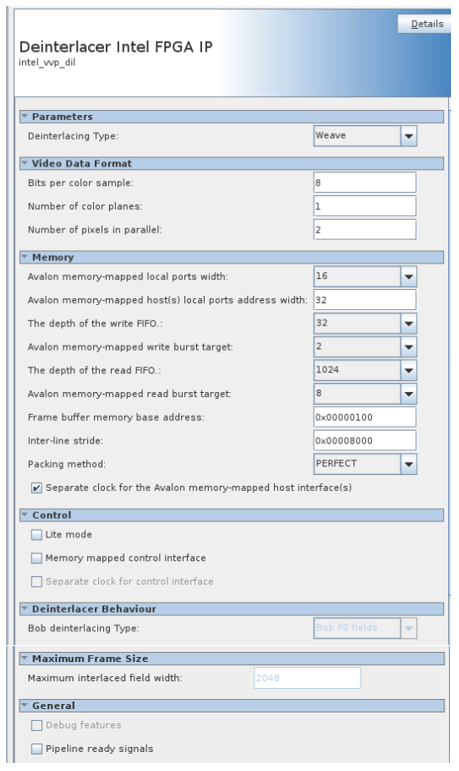

Figure 40. Deinterlacer GUI
Figure 41. Bob DeinterlacingThe figure shows the bob deinterlacing where the IP drops or deinterlaces interlaced fields. The IP passes all progressive frames through.
Figure 42. Weave Interlacing

The figure shows the weave deinterlacing, where the IP drops or deinterlaces interlaced fields. The IP passes all progressive frames through. For incoming F1 and F0, the weave deinterlacer deinterlaces or drops the fields based on the nibble values. For more information on nibble, refer to the Intel FPGA Streaming Video Protocol Specification.

42 Only for weave deinterlacer
43 Bob deinterlacer only
