15.2. Clocked Video to Full-Raster Converter Parameters

Table 200.  Main Parameters
Parameter Values Description
Video Data Format
CV Bus Style Lite, CVI or CVO

Select which sideband signals the IP drives, and which signals are available in Platform Designer.

A second tab allows you to parameterize the CV bus style.

Bits per color sample 6 to 16 Number of bits per color sample.
Number of color planes 1 to 4 Number of color planes in a pixel.
Number of pixels in parallel 1, 2, 4 or 8 Number of pixels transmitted every clock.
AXI4S FR Bus has tReady connection True or False

Select true so the streaming full-raster interface contains the AXI4-S tReady signal.

Select false to remove, the tReady signal.

Control Settings
Memory-mapped control interface True or False Select True to turn on the CPU interface and associated signals. Select False to remove the CPU interface and for all the CPU registers to use default values.
Separate clock for control interface True or False

Select True to include the signal cpu_clock in Platform Designer. It is asynchronous to the video domain.

Select False so the CPU interface uses the signal vid_clock.

Dimensions
Max full-raster width 1 to 65535 The maximum width of raster that this IP passes.
Max full-raster height 1 to 65535 The maximum height of raster this IP passes.
Default full-raster width 1 to 65535

The width of the raster.

The CPU can override this value.

Default full-raster height 1 to 65535

The height of the raster.

The CPU can override this value.

Default Vsync H 1 to 65535

The default pixel position of the rising edge of the vertical timing signal (vsync or vblank)

The CPU can override this value.

Default Vsync V 1 to 65535

The default line where the rising edge of the vertical timing signal (vsync or vblank) occurs.

The CPU can override this value.

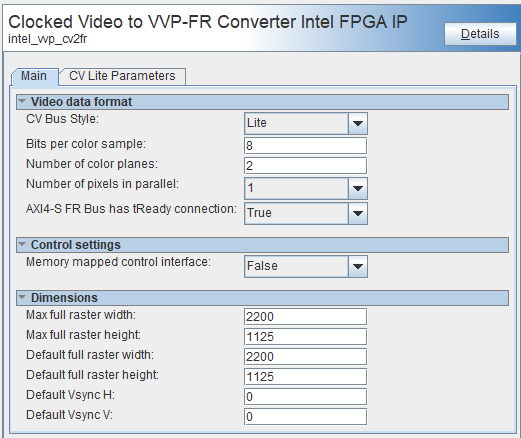

Figure 29. Main Parameters
Table 201.  CV Lite Parameters
Parameter Values Description
Parameters
Valid signal On or off When you select Lite the IP includes an optional data valid input signal, cv_vid_in_valid. Turn on to turn on this input in the IP. Platform Designer includes or removes the signal from the cv_vid_in conduit as appropriate.
Ready signal On or off When you select Lite the IP includes an optional data ready output signal, cv_vid_in_ready. Turn on to turn on this output in the IP. Platform Designer includes or removes the signal from the cv_vid_in conduit as appropriate.
Timing Signals sync, blank, or both Select which timing are available. Platform Designer includes or removes the signals from the cv_vid_in conduit as appropriate

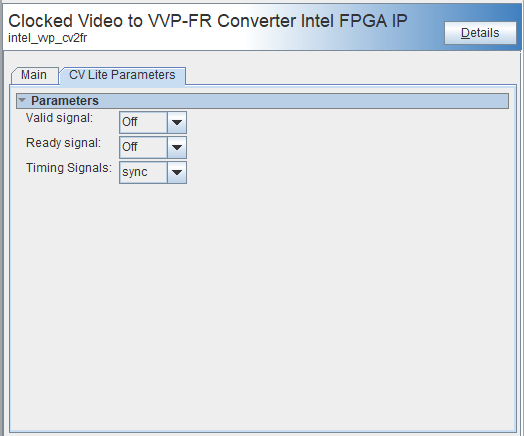

Figure 30. CV Lite Parameters
Table 202.  CVI Parameters
Parameters Values Description
CVI Core Parameters
Source for total resolution Use Extra Logic or Use External Signals

The IP requires the height and width of the raster. Determine this information using additional logic within the IP, or get the information from optional input signals.

This parameter selects the source for the raster dimensions. Platform Designer includes or removes the signals from the cv_vid_in conduit as appropriate

CVI Legacy Tie Offs
Include the vid_hd_sdn signal True or False Select True to add this signal to the cv_vid_in conduit. The signal has no function within the IP and is included for connectivity within Platform Designer.
Include the vid_std signal True or False Select True to add this signal to the cv_vid_in conduit. The signal has no function within the IP and is included for connectivity within Platform Designer.
Width of vid_std 1 to 16 The width of the vid_std signal.
Include the hdmi_duplication signal True or False Select True to add this signal to the cv_vid_in conduit. The signal has no function within the IP and is included for connectivity within Platform Designer.

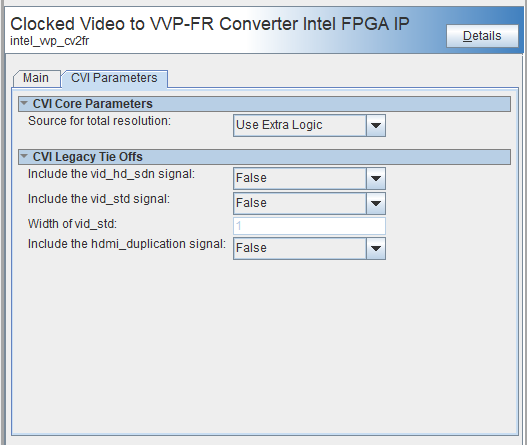

Figure 31. CVI Parameters
Table 203.  CVO Parameters
Parameters Values Description
CVO Legacy Tie Offs
Drive CV Output Clock True or False Select True to add this signal to the cv_vid_in conduit. The signal has no function within the IP and is included for connectivity within Platform Designer.
Include the underflow signal True or False Select True to add this signal to the cv_vid_in conduit. The signal has no function within the IP and is included for connectivity within Platform Designer.
Include the vid_mode_change signal True or False Select True to add this signal to the cv_vid_in conduit. The signal has no function within the IP and is included for connectivity within Platform Designer.
Include the frame lock signals True or False Select True to add this signal to the cv_vid_in conduit. The signal has no function within the IP and is included for connectivity within Platform Designer.
Include the vid_std signal True or False Select True to add this signal to the cv_vid_in conduit. The signal has no function within the IP and is included for connectivity within Platform Designer.
Width of vid_std 1 to 16 Select the width of the vid_std signal.

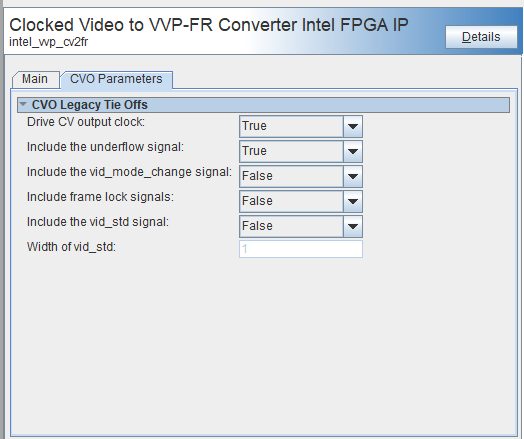

Figure 32. CVO Parameters
