6.3.6. The FMCB Tab

The FMCB tab allows you to perform loopback tests on the FMCB port.

Figure 22. The FMCB tab

The following sections describe the controls on the FMCB tab.

Status

Displays the following status information during a loopback test:
  • PLL Lock: Shows the PLL locked or unlocked state.
  • Pattern Sync: Shows the pattern synced or not synced state. The pattern is considered synced when the start of the data sequence is detected.

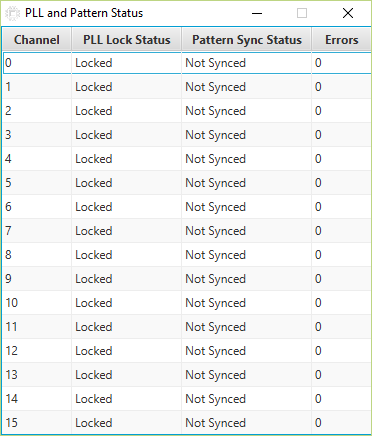

  • Details: Shows the PLL lock and pattern status:

Port

Allows you to specify which interface to test. The following port tests are available: XCVR and CMOS

PMA Setting

Allows you to make changes to the PMA parameters that affect the active transceiver interface. The following settings are available for analysis:
  • Serial Loopback: Routes signals between the transmitter and the receiver.
  • VOD: Specifies the voltage output differential of the transmitter buffer.
  • Pre-emphasis tap:
    • 1st pre: Specifies the amount of pre-emphasis on the pre-tap of the transmitter buffer.
    • 2nd pre (L-Tile): Specifies the amount of pre-emphasis on the second pre-tap of the transmitter buffer.
    • 1st post: Specifies the amount of pre-emphasis on the first post tap of the transmitter buffer.
    • 2nd post (L-Tile): Specifies the amount of pre-emphasis on the second post-tap of the transmitter buffer.
  • Equalizer: Specifies the AC gain setting for the receiver equalizer in four stage mode.
  • DC gain: Specifies the DC gain setting for the receiver equalizer in four stage mode.
  • VGA: Specifies the VGA gain value.

Data Type

Specifies the type of data contained in the transactions. The following data types are available for analysis.
  • PRBS 7: Selects pseudo-random 7-bit sequences.
  • PRBS 15: Selects pseudo-random 15-bit sequences.
  • PRBS 23: Selects pseudo-random 23-bit sequences.
  • PRBS 31: Selects pseudo-random 31-bit sequences.
  • HF: Selects highest frequency divide-by-2 data pattern 10101010.
  • LF: Selects lowest frequency divide-by-33 data pattern.

Error Control

Displays data errors detected during analysis and allows you to insert errors:
  • Detected errors: Displays the number of data errors detected in the hardware.
  • Inserted errors: Displays the number of errors inserted into the transmit data stream.
  • Insert: Inserts a one-word error into the transmit data stream each time you click the button. Insert is enabled only during transaction performance analysis.
  • Clear: Resets the Detected errors and Inserted errors counters to zeroes.

Run Control

TX and RX performance bars: Show the percentage of maximum theoretical data rate that the requested transactions are able to achieve.

Start: This control initiates the loopback tests.

Data Rate (H-Tile): Displays the XCVR type and data rate of each channel.
Figure 23. FMCB Data Rate

Tx (Mbps) and Rx (Mbps): Show the number of bytes of data analyzed per second.
