SMA 2.4 mm Molex® Connector Assembly

Figures below show the structure of SMA/Interface 2.4 mm (MOLEX_73387) for two different versions (A and B). The operating frequency from DC is up to 50 GHz, which is within the range of 28 Gbps applications.

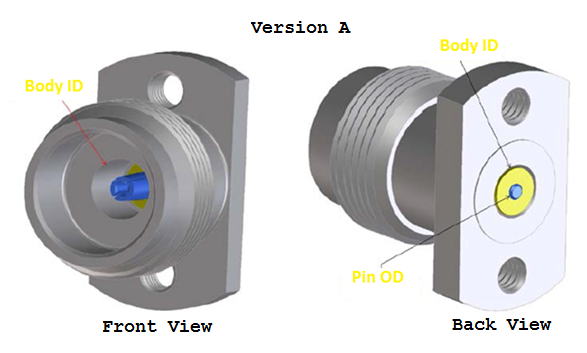

Figure 87. Version-A Molex 2.4 mm SMA connector
Figure 88. Version-B Molex 2.4 mm SMA connector
