Option 1: Via-In-Pad Topology
Intel recommends using via-in-pad technology for data rates above 15 Gbps. Use via-in-pad when you want to transfer signals from the BGA pad to the inner layers.

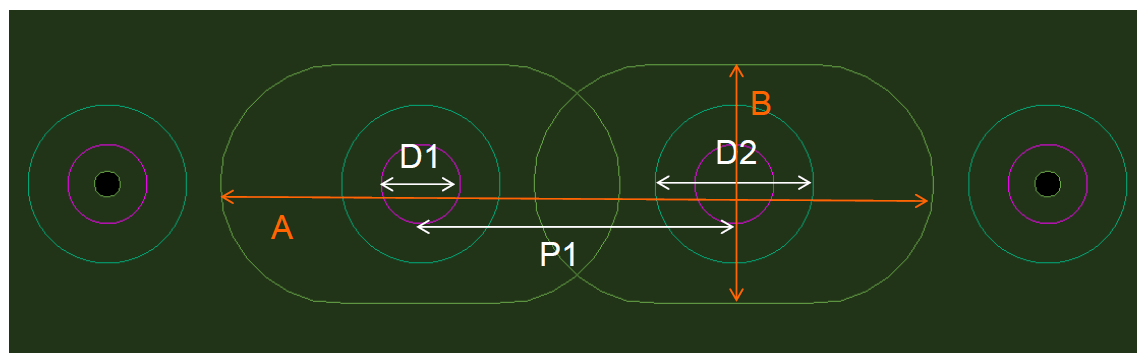

Figure 4. Option 1: FPGA Fan-out Configuration at Solder Ball Topology

D1: Via drill hole diameter: 8 mil (for up to 1:12 stackup aspect ratio) or 10 mil for higher stackup aspect ratios.
D2: Via pad diameter: 18 mil (for up to 1:12 stackup aspect ratio) or 20 mil for higher stackup ratios.
P1: Standard via-to-via pitch: 1 mm.
A: Horizontal anti-pad: 90 mil.
B: Vertical anti-pad: 28 mil (for up to 1:12 aspect stackup ratio) or 30 mil for higher stackup aspect ratios.
