5.3. Configuring the MIPI D-PHY RX Mode

On the various Link n tabs, you can configure each channel link to act as a D-PHY transmitter (TX) or D-PHY receiver (RX). This topic discusses configuration for RX use.

You need to specify the MIPI D-PHY link location on the I/O bank during IP configuration. Look for the Byte Location parameter under the Link n Location for each Link n tab. For the physical pin location of each byte location, refer to the table in the Identifying Pin Assignments Based on Byte Location topic.

Figure 11. Link Top Tab

Table 11.  Link Top Configuration Parameters
Parameter Name Description Setting
D-PHY Role Configure D-PHY mode as Tx or Rx. If not using the channel, please remain it as unused. TX/RX/Unused. (Default value is Unused.)
Source PLL

Specify which PLL source to drive the link's clock.

0 = PLL from Bottom Sub bank

1 = PLL from Top Sub bank
0 or 1. (Default value is 0.)
Bit Rate Configure the MIPI D-PHY data rate.

D-Series: 150Mbps - 3500Mbps

E-Series device group A: 150Mbps - 3500Mbps

E-Series device group B: 150Mbps - 2500Mbps

PPI bus width Set PPI bus width for data lanes in the link : 16 bits. 16.
Number of Lanes Set number of data lanes for the link : 1, 2, 4 or 8.

1 Data & 1 Clk

2 Data & 1 Clk

4 Data & 1 Clk

8 Data & 1 Clk

(Default is 1 Data & 1 Clk.)

Continuous Clock Specify that the clock lane is continuous. True or False. (Default value is False.)
Free Running Clock Frequency Rx free running clock frequency in MHz. When calibration is enabled, this will be fixed to RX clock.
Byte Location Specifies D-PHY links BYTE location within the I/O bank. 0-7.

Link Calibration Configuration

On the Link Calibration tab you can enable the skew and alternate calibration functions.

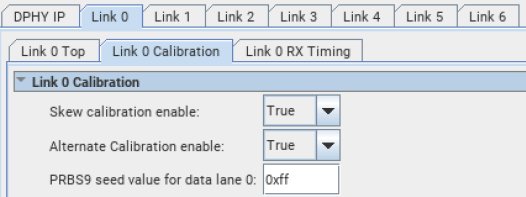

Figure 12. Link Calibration Tab
Table 12.  Link Calibration Parameters
Parameter Name Description Setting
Skew Calibration Enable Generate logic to support skew calibration. True or False. (Default value is False.)
Alternate Calibration Enable Generate logic to support alternate calibration. (Available when skew calibration mode is enabled.) True or False. (Default value is False.)
PRBS9 seed value for data lane n PRBS value for data lane used by Tx / Rx alt cal and test mode. (Available when Alternate Calibration is enabled.) 0xFF

Link RX Timing Configuration

On the Link RX Timing tab you can configure the receive timing parameters.

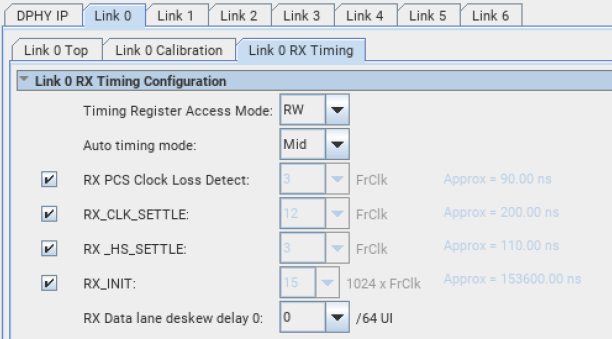

Figure 13. Link RX Timing Tab
Table 13.  Link RX Timing Configuration Parameters
Parameter Name Description Setting
Timing Register Access Mode

Set to implement timing registers as R/W or RO.

When using R/W mode, more register consumes in logic element resources.
RW or RO. (Default is RW.)
Auto Timing mode Set Rx to be fixed at MID. Choose to use min timing, max timing or mid for default values of timing registers set to "Auto". All timing registers have a min specified timing, but not all have a max specified timing. For those with no max specified timing, max is set to register max value.
  • Min – auto timing will set timing parameter to minimum required by specification (or 0 if below 0).
  • Max – auto timing will set timing parameter to the maximum allowed by specification if such specification exists. If no maximum value is specified, auto timing will set it to 2x the minimum specification. Both values are set up to maximum allowable value based on register width.
  • Mid – auto timing will set to (max + min) / 2.
Max, Mid, or Min. (Default is Mid.)
RX PCS Clock Loss Detect

Timeout for D-PHY PCS to detect absence of Clock transitions and deassert RxClkActiveHS on the PPI bus. Min value should be equal to 3 x RX_CLK-period (in ns). This is different from the D-PHY specification TCLK-MISS.

This will be used to clock gate MIPI RX forwarded clock delay computations (approx): - TRX_CLK_LOSS_DETECT = (RX_CLK_LOSS_DETECT + 6) * Core_CLK_period.
0-255. (Default is 3.)
RX_CLK_SETTLE Time interval during which the HS receiver should ignore any Clock Lane HS transitions, starting from the beginning of TCLK-PREPARE. Delay computation (approx): TRX-CLK-SETTLE = (RX_CLK_SETTLE + 6) * Core_CLK_period + 2 * RX_CLK_period. 0-255. (Default is 21.)
RX_HS_SETTLE Time interval during which the HS receiver shall ignore any Data Lane HS transitions, starting from the beginning of THS-PREPARE. The HS receiver shall ignore any Data Lane transitions before the minimum value, and the HS receiver shall respond to any Data Lane transitions after the minimum val Delay computation (approx): THS-SETTLE = (RX_HS_SETTLE + 7) * Core_CLK_period + RX_CLK_period. 0-255. (Default is 10.)
RX_INIT After power-up, the RX side PHY shall be initialized when the TX PHY drives a Stop State (LP-11) for a period longer than TINIT. RX side shall ignore all Line states prior to this Initialization period. 0-255. (Default is 22.)
RX Data Lane deskew Delay 0 Manual data Lane 0 deskew delay setting . 0-63. (Default is 0.)
