AN 669: Drive-On-Chip Design Example for Cyclone V Devices

ID 683466
Date 5/15/2022
Public
Document Table of Contents

6.3.2. Starting the Demonstration

  1. Click Start demo.
  2. Click Advance demo to start the demonstration step 1. The demonstration highlights the text that describes this step.
  3. Click Advance Demo again to start each consecutive step.
  4. The demonstration finishes when you click Advance Demo and all text shows again with no highlighting.
  5. To repeat the demonstration, click Advance Demo again.

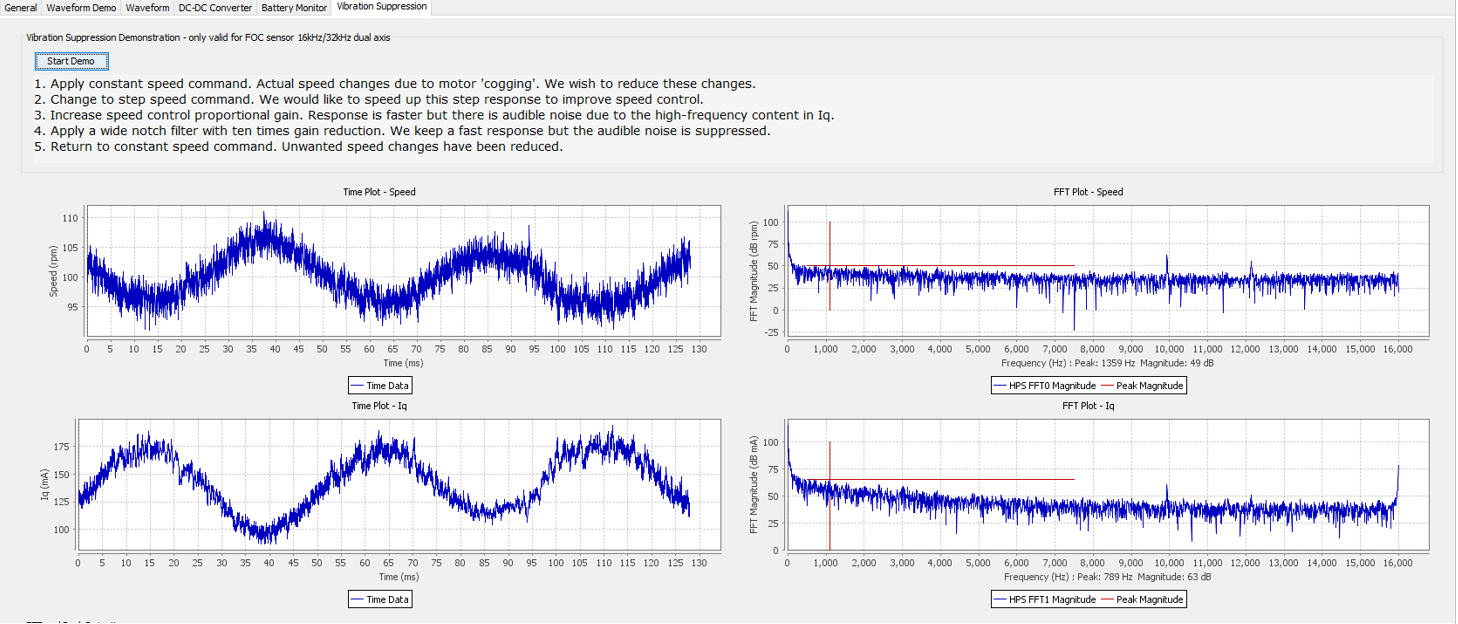

    Figure 18. Vibration Suppression Tab
