4.5. Setting Up Terminal Emulator

You can choose any terminal emulators you are familiar with, for example PuTTY
  1. Open PuTTY.
  2. Setup Serial line: COM4, Speed: 115000

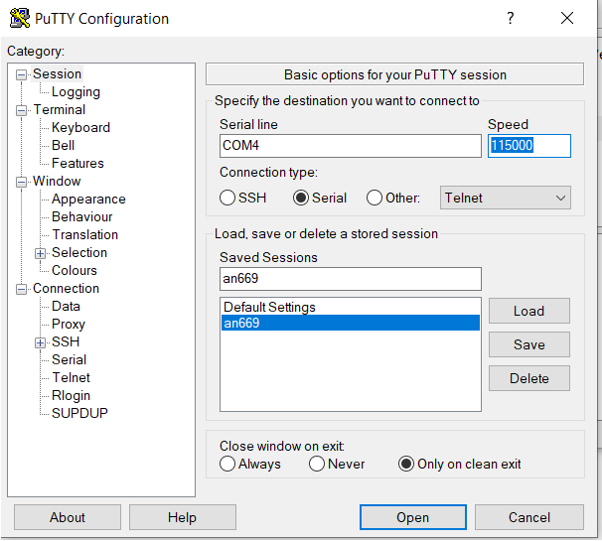

    Figure 3. Set Up PuTTY
  3. Click Open.
    After running the software, all the information displays.
