9.10.6. IIR Filter Examples

Table 22.  Exanple IIR Filters
Description Ωd (Hz) Ωn (Hz) ζd
(nondimensional) ζn
(nondimensional)
Sharp notch with 10x gain reduction at 2 kHz 2,000 2,000 0.3 0.03
Wide notch with 10x gain reduction at 1 kHz 1,000 1,000 100 10

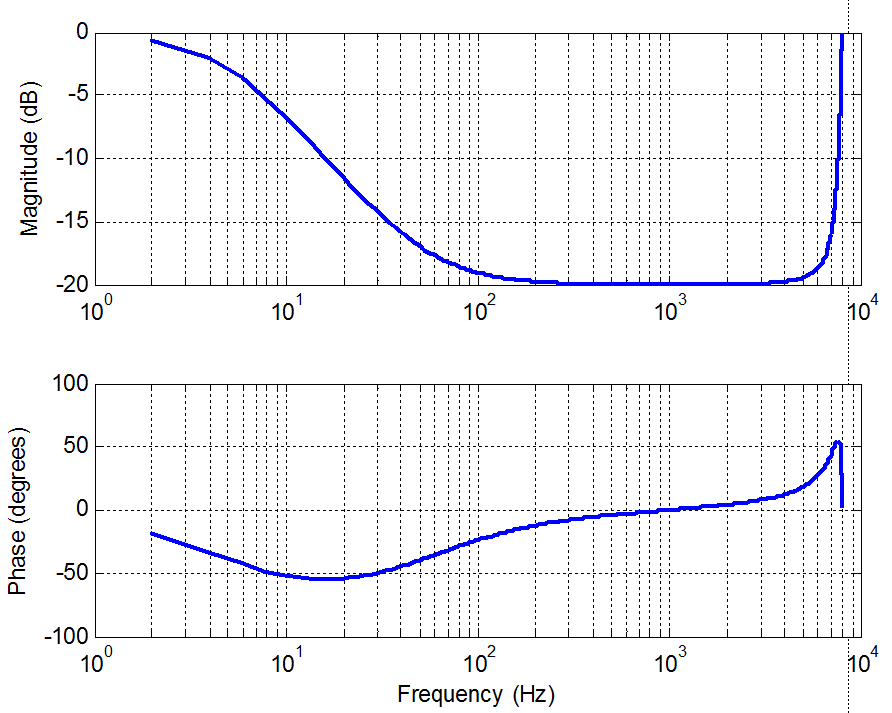

Figure 51. Bode Plot—Sharp Notch with 10x Gain Reduction at 2 kHz
Figure 52. Bode Plot, Wide Notch with 10x Gain Reduction at 1 kHz
