ALTDQ_DQS2 IP Core User Guide

Side Read Operation

The side read operation is performed between 18.923 ms and 18.963 ms. The DQS agent sends data to the DQS driver with the side_readdata signal. Data validation is carried out in parallel, by comparing the side_readdata signal against the content of the check_fifo (data which was written out during the DQS write operation). If there is a mismatch, the software generates an error message.

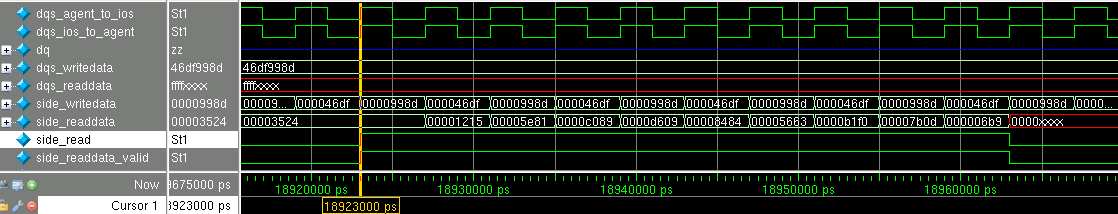

The following figure shows the waveform for the side read operation.

Side Read Operation Waveform
