ALTDQ_DQS2 IP Core User Guide

Instantiating Altera PLL

  1. In the IP Catalog (Tools > IP Catalog), locate and double-click the name of the IP core to customize. The parameter editor appears.
  2. Specify a top-level name for your custom IP variation. This name identifies the IP core variation files in your project. If prompted, also specify the target Altera device family and output file HDL preference. Click OK.
  3. On the General tab, specify the parameters as shown in the following figures.

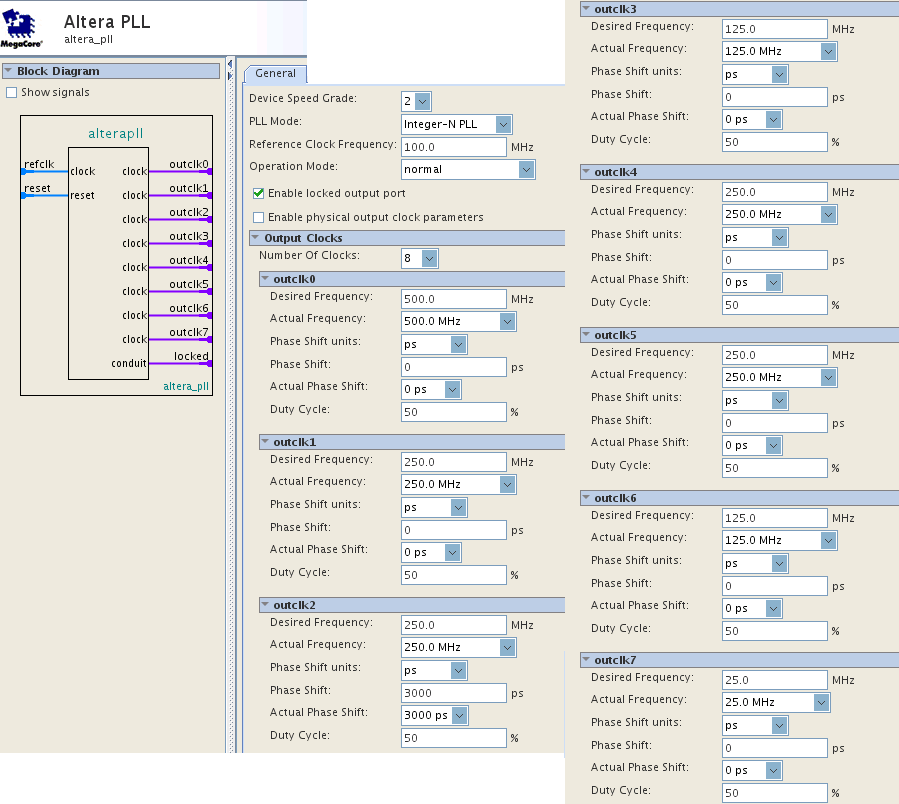

    Figure 13. Altera PLL Parameter Settings for Stratix V Devices


  4. Click Finish.

Section Content
Altera PLL Clock Settings Information
