6.2.4. PCIe0 PCI Express / PCI Capabilities Parameters

This group of parameters defines various capability properties of the IP core. Some of these parameters are stored in the PCI Configuration Space - PCI Compatible Configuration Space. The byte offset indicates the parameter address.

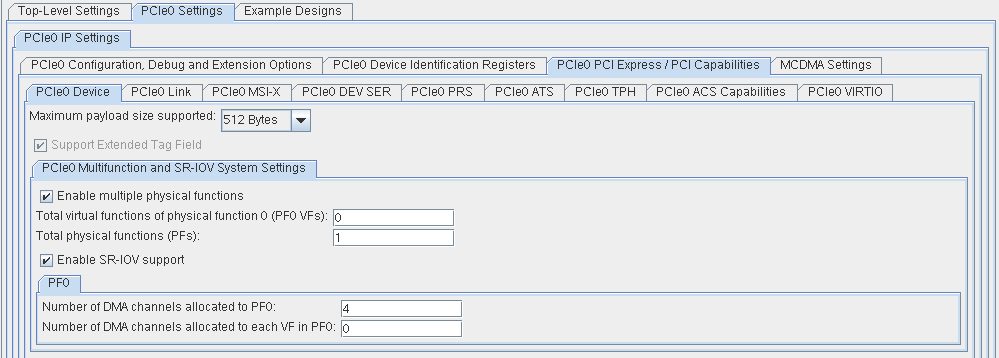

Figure 22. PCIe0 PCI Express / PCI Capabilities Parameters
