4.2.2. Running DSP Builder Advanced Blockset Automatic Testbenches

Generally, for testbenches, click DSP Builder > Verify Design. To run a single subsystem (or the whole design) in an open ModelSim window, click via DSP Builder > Run RTL Simulation. You can use the command line if you want to script testing flows.

  • To get a list of the blocks in a design that have automatic testbenches, run the following command in MATLAB:

    getBlocksWithATBs('model')

  • To load an automatic testbench from the ModelSim simulator, use the following command:

    source <subsystem>_atb.do

    Alternatively, in ModelSim click Tools > Execute Macro and select the required .do file.

  • You can run an automatic testbench targeting a subsystem or a IP block in your design, or you can run an automatic testbench on all of your design.
  • To run an automatic testbench from the MATLAB command line on a single entity, use the command dspba.runModelsimATB.
  • To run testbenches for all subsystems and the device level and set testbench options: in the simulink window, click DSP Builder > Verify Design or type:

    run_all_atbs(<model name>, Run simulation? (0:1), run Quartus (0:1))

  • To run the device level testbench in the ModelSim simulator, click DSP Builder > Run RTL Simulation.
  • To manually refresh the list of subsystems click Run RTL Simulation > Refresh

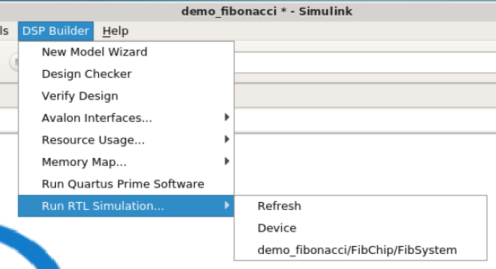

Figure 21. Refresh
  1. The dspba.runModelsimATB Command Syntax
    Use this command to run RTL simulation tests.
  2. Running All Automatic Testbenches
    To automatically run all the individual automatic testbenches in a design use the command run_all_atbs. Run this command from the same directory that contains the .mdl file.
  3. The command run_all_atbs Command Syntax
    This command has the syntax:
  4. Testbench Error Messages
    Typical error messages have the following form:
Level Two Title
