5.4. Modifying the DSP Builder Fibonacci Design to Generate Vector Signals

Simulate the design.

Procedure

  1. In the Scope Design Outputs scope zoom in on the y axis to see the short Fibonacci cycle.
    Figure 38. Fibonacci Scope Design Outputs

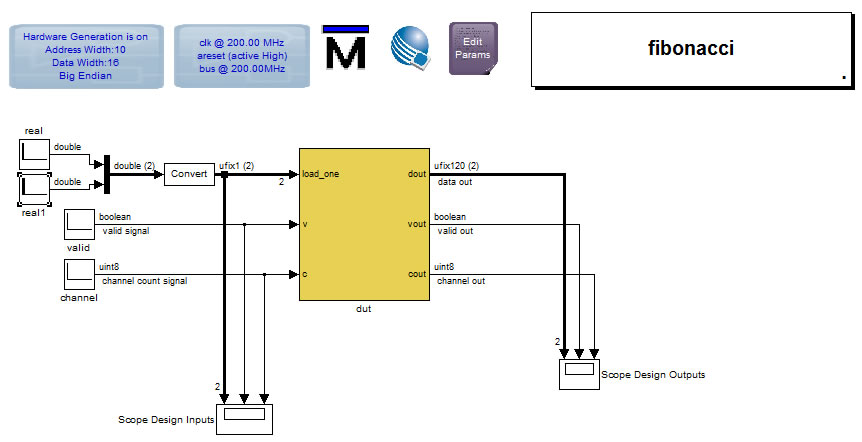

  2. Copy the real input block, add a Simulink mux and connect to the Convert block.
  3. Edit the timing of the real1 block, for example [0 1 1 1 zeros(1,50)].
