4.2. Activating the License

This section presents the steps required for activating and applying your license.

  1. Go to Arm* Licensing Portal to generate a license file based on the license code you received with your Development Kit.
  2. Start the Arm* DS* for Intel® SoC FPGA Edition IDE.
  3. The first time you run this, the tool asks you to add a product license. Select Add product license and click Next.

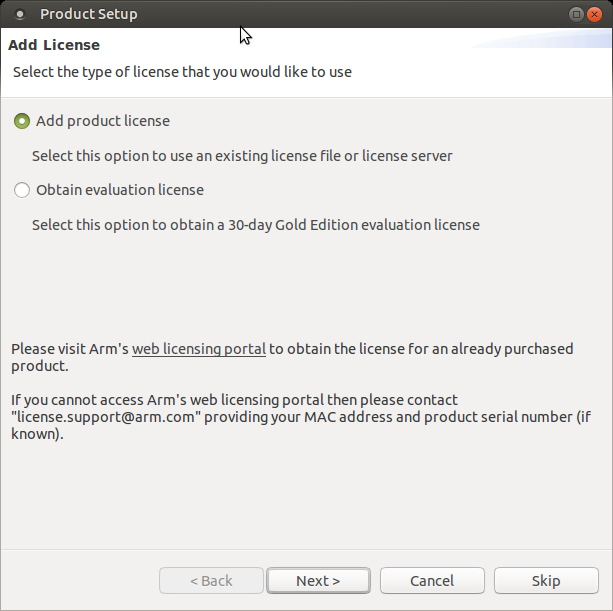

    Figure 14. Add License
  4. Select License File and browse to the place where you stored your generated license. Click Next.

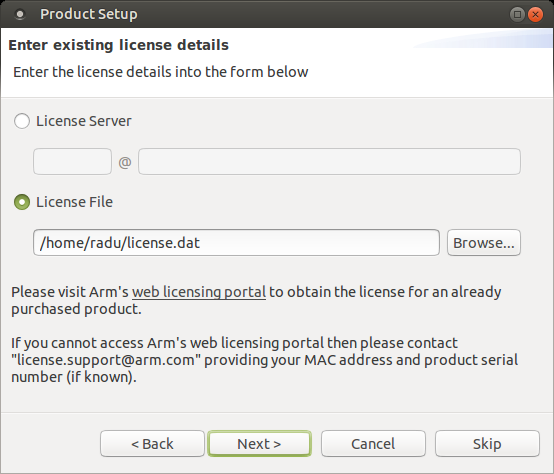

    Figure 15. Enter Existing License Details
  5. The Arm* DS* for Intel® SoC FPGA Edition license is automatically selected. Click Next to activate it.

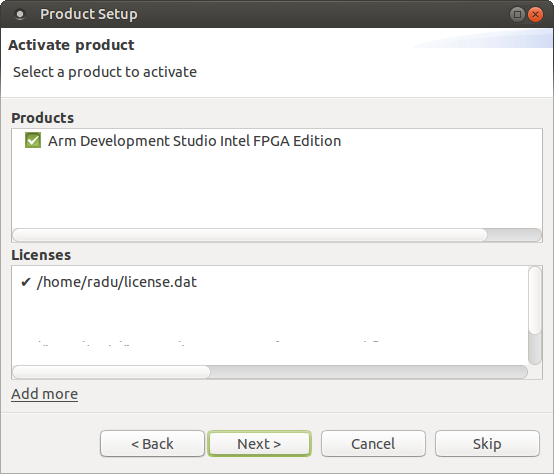

    Figure 16. Activate Product
  6. The License is activated. Click Finish to complete the process.

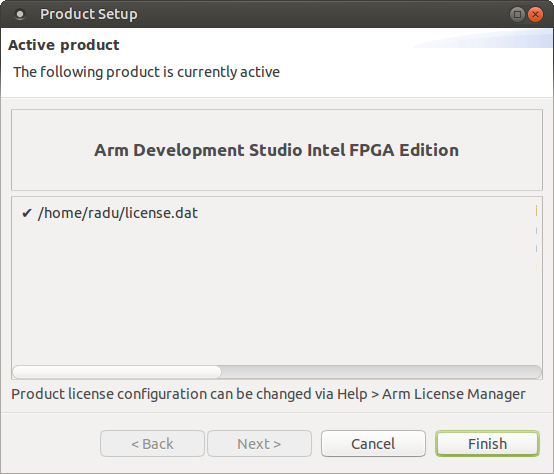

    Figure 17. Active Product
