1.6.3. Instantiating the SLD JTAG Bridge Host

To generate and instantiate the SLD JTAG Bridge Host Intel® FPGA IP:
  1. On the IP Catalog (Tools > IP Catalog), type SLD JTAG Bridge Host.

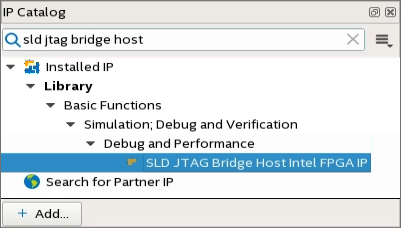

    Figure 10. Find in IP Catalog
  2. Double click SLD JTAG Bridge Host Intel® FPGA IP .
  3. In the Create IP Variant dialog box, type a file name, and then click Create.

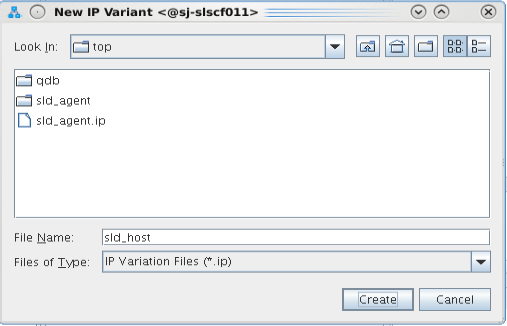

    Figure 11. Create IP Variant Dialog Box
    The IP Parameter Editor Pro window shows the IP parameters. In most cases, you do not need to change the default values.

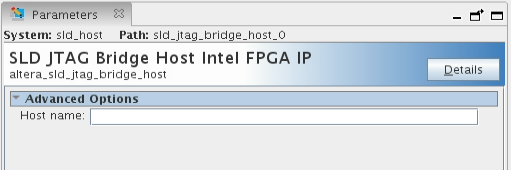

    Figure 12. SLD JTAG Bridge Host Intel® FPGA IP Parameters
  4. Click Generate HDL.
  5. When the generation completes successfully, click Close.
  6. If you want an instantiation template, click Generate > Show Instantiation Template in the IP Parameter Editor Pro.
