4.3.1. Defining Parameters for the Logic Analyzer Interface

The Logic Analyzer Interface Editor allows you to define the parameters of the LAI.
  • Click Tools > Logic Analyzer Interface Editor.

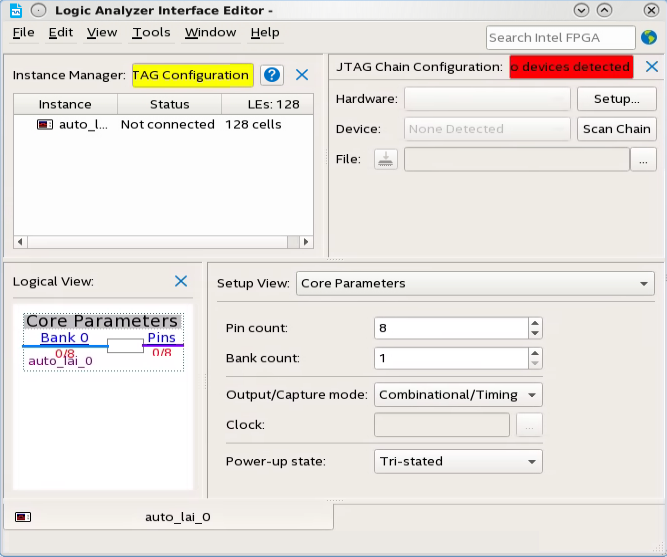

    Figure 96. Logic Analyzer Interface Editor
  • In the Setup View list, select Core Parameters.
  • Specify the parameters of the LAI instance.
