FPGA-based Safety Separation Design Flow for Rapid Functional Safety Certification

Compiling the Design

In the Intel® Quartus® Prime software, click Processing > Start Compilation

When the design successfully compiles, the Intel® Quartus® Prime software displays the safety and nonsafety IP information in the fitter section of the Compilation Report under the Strict Preservation Section.

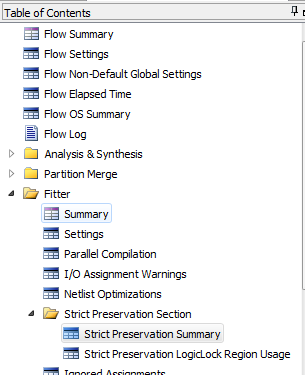

Figure 13. Strict Preservation Section
