2.3.1.1.1. Simulation Result

Note: The simulation and hardware test results were generated with MCDMA H-Tile.

Testbench writes 4 KB of incrementing pattern to on-chip memory and read back via Avalon-MM PIO interface. This design example testbench doesn’t simulate H2D/D2H data movers.

Figure 2. Simulation Log

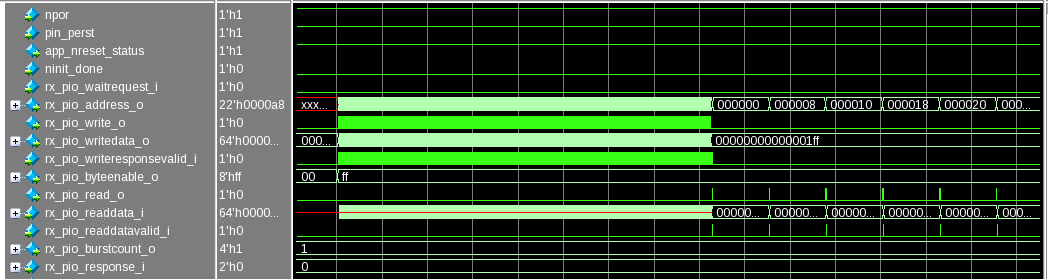

Figure 3. Simulation Waveform
