6.4.3.2. 1 Rank x 16 Discrete (Memory Down) Topology

A single channel with 1 rank and x16 memory devices, this interface covers data bytes (DQ/DQS), address signals, command signals (BA, BG, RAS, CAS, WE, ACT, PAR), control signals (CKE, CS, ODT) and clocks (CLK).

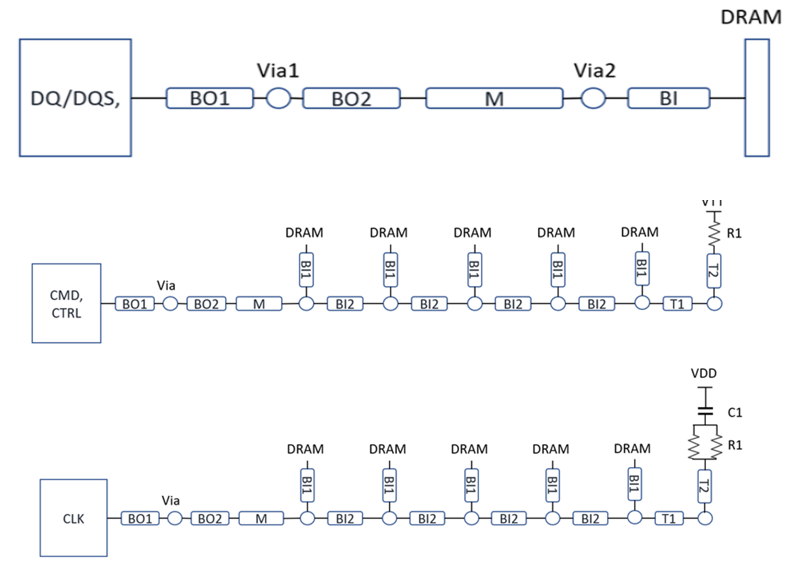

The following figure illustrates the stripline routing for inner pins, for the signal connection topology for 1 rank x 16 memory down configuration.

Figure 25. Stripline Routing for DDR4 1 Rank x 16 Discrete Topology

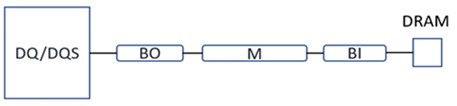

The following figure illustrates the microstrip routing for edge pins, per byte.

Figure 26. Microstrip Routing for DDR4 1 Rank x 16 Discrete Topology

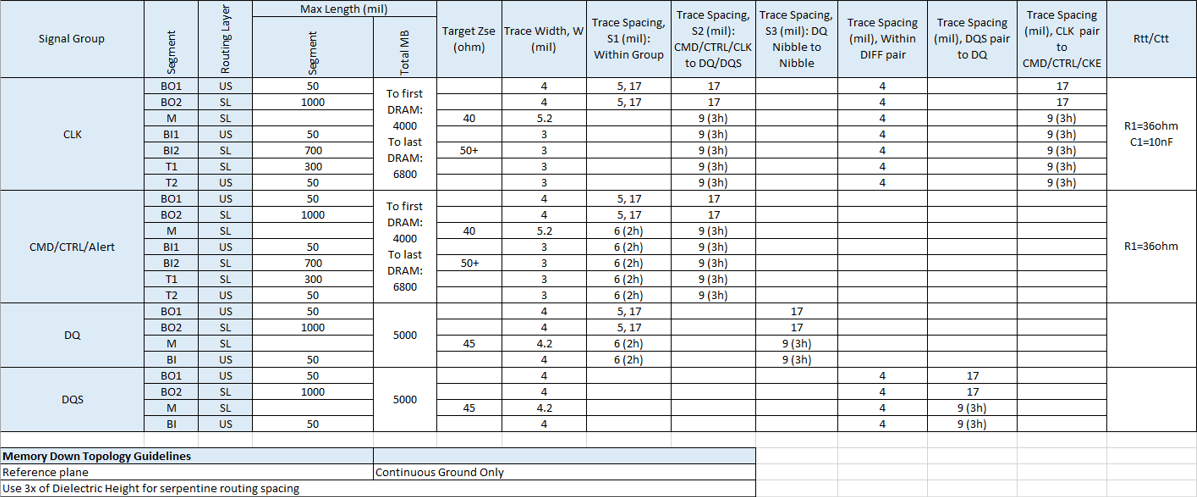

The following table shows the stripline routing guideline for inner pins.

Table 79.  Stripline Routing Guideline for GPIO Inner Pins

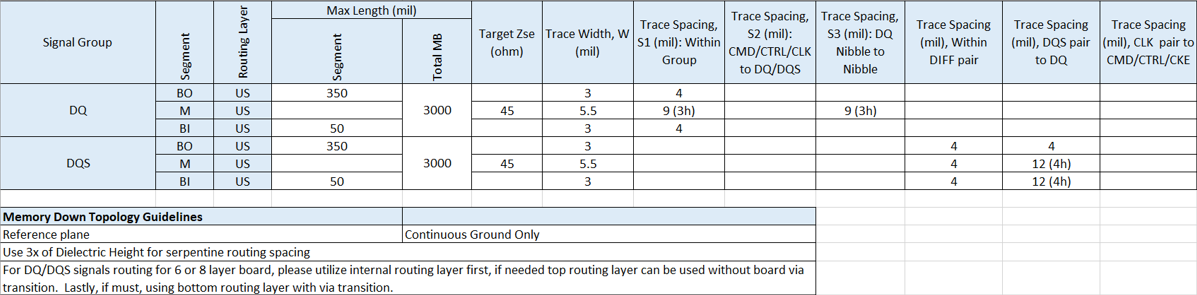

The following table shows the microstrip routing guideline for edge pins,per byte.

Table 80.  Microstrip Routing Guideline for GPIO Edge Pins
