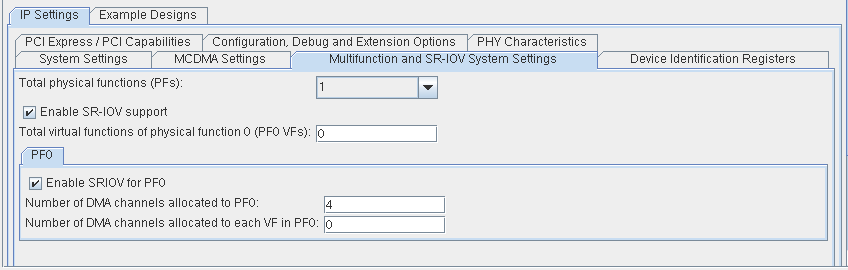

5.1.4. Multifunction and SR-IOV System Settings Parameters [Endpoint Mode]
|Total physical functions (PFs)||1-4||
Sets the number of physical functions
|Enable SR-IOV support||On / Off||
Enable SR-IOV support
|Total virtual functions of physical function (PF VFs)||0 (default)||
Set the number of VFs to be assigned to each Physical Function
|Enable SRIOV for PF0||On / Off||
Enable SR-IOV support on Physical Function
|Number of DMA channels allocated to PF0||0 - 512||
Number of DMA Channels between the host and device PF Avalon-ST / Avalon-MM ports.
|Number of DMA channels allocated to each VF in PF0||0 - 512||
When SRIOV support is turned on for the PF, this parameter sets the number of DMA channels allocated to each VF in the PF
Note: This parameter is active when 'Enable SR-IOV support' is set to ON and 'Enable SRIOV for PF' is also set to ON.
