Multi Channel DMA Intel® FPGA IP for PCI Express User Guide

ID 683821
Date 8/19/2022
Public

A newer version of this document is available. Customers should click here to go to the newest version.

Document Table of Contents

7.1. Generating the IP Core

You can use the Intel® Quartus® Prime Pro Edition IP Catalog or Platform Designer to define and generate a Multi Channel DMA IP for PCI Express custom component.

Follow the steps shown in the figure below to generate a custom Multi Channel DMA IP for PCI Express component.
Figure 26. IP Generation Flowchart

You can select Multi Channel DMA IP for PCI Express in the Intel® Quartus® Prime Pro Edition IP Catalog or Platform Designer as shown below.

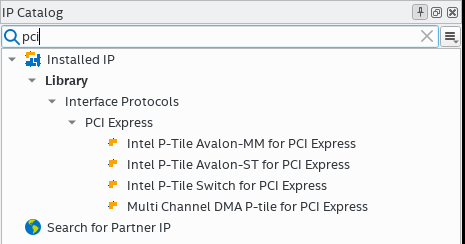

Figure 27.  Intel® Quartus® Prime Pro Edition IP Catalog (with filter applied)
Figure 28.  Intel® Quartus® Prime Pro Edition IP Catalog (with filter applied)

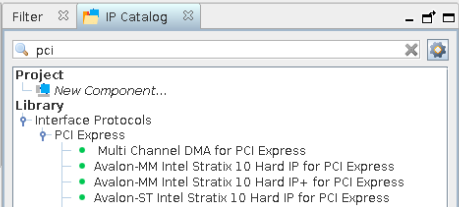

Figure 29.  Platform Designer IP Catalog (with filter applied)
