You can use cross-probing to determine the location of a design module on the device in Chip Planner.

To view the placement of a module with cross-probing following place and route:

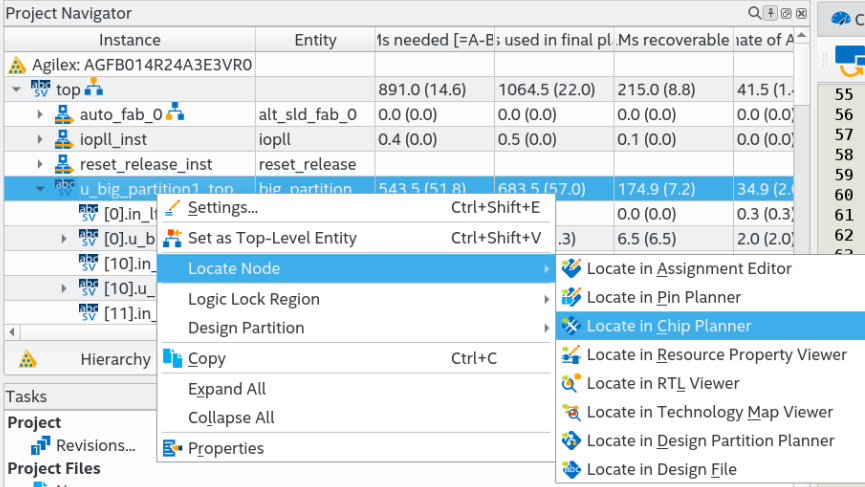

  1. On the Project Navigator Hierarchy tab, right-click on a module name and click Locate in Chip Planner.
    Figure 92. Locate in Chip Planner Command from Project Navigator

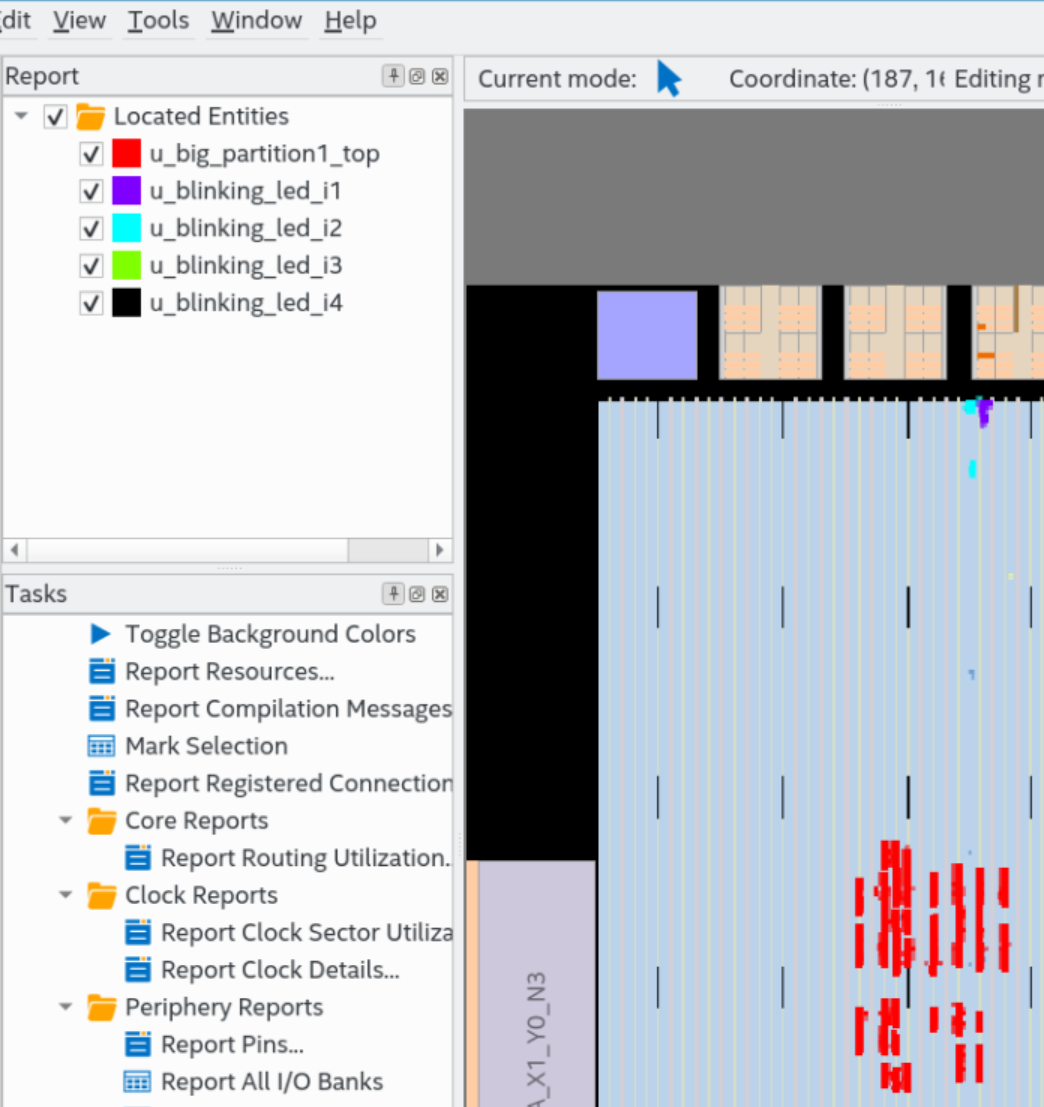

  2. In the Reports pane, view the list of Located Entities color-coded and separated by module.
    Figure 93. Located Entities in Reports Pane
