Document Table of Contents Using JTAG to Load the Intel® Arria® 10 *.sof file

  1. Start Intel® Quartus® Prime Programmer
    $ source <N3000 Installation Directory>/inteldevstack/bin/
    $ quartus_pgmw
  2. Select auto detect and select device 10AT115S1. If you see 10M50 as the device, then switch SW2 is not set properly – you must uninstall the card and change SW2.

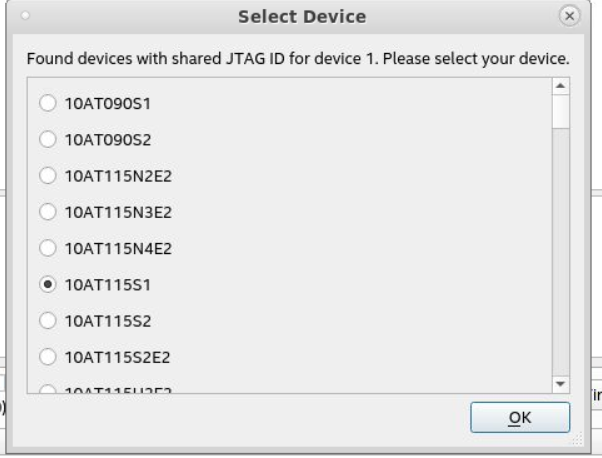

    Figure 34. Select Device GUI
  3. Right click the File column and select Change File.
    Figure 35. Change File Selection
  4. Navigate to the pac-n3000.sof file, select Program/Configure and press Start. This programs the Intel® Arria® 10 FPGA with the pac-n30000.sof file. Wait until the 100% (Successful) is shown under progress:
    Figure 36.  Intel® Quartus® Prime Programmer Pro Edition GUI
