5.2.2.2.2. PCIe VF MSI-X

The VF MSI-X capability is available in Multichannel DMA, BAM+MCDMA and BAM+BAS+MCDMA user modes if the SR-IOV support is enabled and total VFs are non-zero.

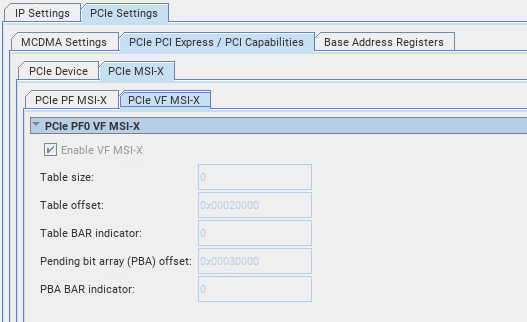

Figure 14. PCIe VF MSI-X Parameters
Table 46.  PCIe PF MSI-X Parameters
Parameter Value Default Value Description
Enable MSI-X On / Off See Description

Enables or disables the MSI-X capability

Note: In Multichannel DMA, BAM+MCDMA and BAM+BAS+MCDMA user modes, the MSI-X capability is automatically enabled and capability register are set by the IP GUI. You cannot modify the capability register values.
Table Size 0 - 2047 0

Sets the number of entries in the MSI-X table

System software reads this field to determine the MSI-X table size N, which is encoded as N-1
Table offset 0x00020000 0x00020000

Sets the read-only base address of the MSI-X table

Points to the base of the MSI-X table. The lower 3 bits of the table BAR indicator (BIR) are set to zero by software to form a 64-bit qword-aligned offset

Table BAR Indicator 0 0

Specifies which one of a function's base address registers, located beginning at 0x10 in the Configuration Space, maps the MSI-X table into memory space

This field is read-only
Pending bit array (PBA) offset 0x00030000 0x00030000

Used as an offset from the address contained in one of the function's Base Address registers to point to the base of the MSI-X PBA. The lower 3 bits of the PBA BIR are set to zero by software to form a 32-bit qword-aligned offset

This field is read-only after being programmed
PBA BAR Indicator 0 0

Specifies the function Base Address registers, located beginning at 0x10 in Configuration Space, that maps the MSI-X PBA into memory space

This field is read-only in the MSI-X Capability Structure
