5.2.1.5. BAM+MCDMA Mode

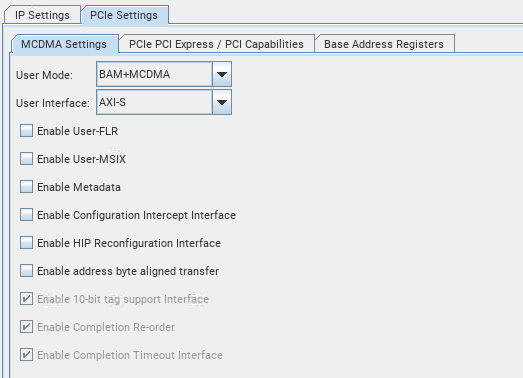

Figure 10. BAM+MCDMA Mode Paramters
Table 42.  BAM+MCDMA Mode Parameters
Parameter Value Default Value Description
User Interface AXI-S AXI-S

Sets the type of User interface.

Currently AXI Stream interface is supported.

Enable User-FLR On / Off Off

Select to enable User FLR interface which allows passing of FLR signals to the user side application.
Enable User-MSIX On / Off Off

User MSI-X enables the user application to initiate interrupts through MCDMA.

This option is available in the MCDMA, BAM + MCDMA, and BAM + BAS + MCDMA modes.

Enable Metadata On / Off Off

Enables or disables metadata
Enable Configuration Intercept Interface On / Off Off

Select to enable user configuration intercept interface.
Enable HIP Reconfiguration Interface On / Off Off

Select to enable Hard IP reconfiguration interface.
Enable address byte aligned transfer On / Off Off

This option enables the Byte aligned address mode support needed for Kernel or DPDK drivers. The DMA makes no assumption on the alignment of data w.r.t to address.

Enable 10-bit tag support interface On On

Enables 10-bit tag support interface
Enable Completion Re-order On On

Enables completion re-order
Enable Completion Timeout Interface On On

Enables completion timeout interface
