5.2.1.6. BAM+BAS+MCDMA Mode

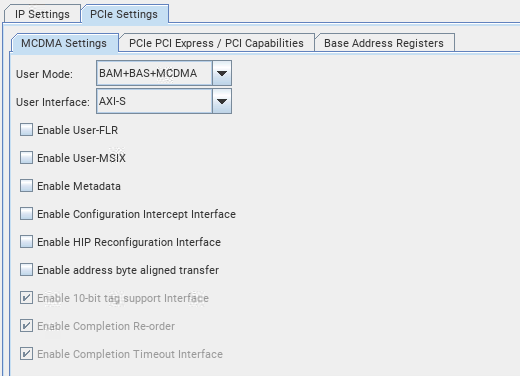

Figure 11. BAM+BAS+MCDMA Mode Paramters
Table 43.  BAM+BAS+MCDMA Mode Parameters
Parameter Value Default Value Description
User Interface AXI-S AXI-S

Sets the type of user interface.

Currently AXI Stream interface is supported
Enable User-FLR On / Off Off

Select to enable User FLR interface which allows passing of FLR signals to the user side application.
Enable User-MSIX On / Off Off

User MSI-X enables the user application to initiate interrupts through MCDMA.

This option is available in the MCDMA, BAM + MCDMA, and BAM + BAS + MCDMA modes.

Enable Metadata On / Off Off

Enables or disables metadata
Enable Configuration Intercept Interface On / Off Off

Select to enable user configuration intercept interface
Enable HIP Reconfiguration Interface On / Off Off

Select to enable Hard IP reconfiguration interface
Enable address byte aligned transfer On / Off Off

This is the option to enable the Byte aligned address mode support needed for Kernel or DPDK drivers and DMA makes no assumption on the alignment of data w.r.t to address

Enable 10-bit tag support interface On On

Enables 10-bit tag support interface
Enable Completion Re-order On On

Enables completion re-order
Enable Completion Timeout Interface On On

Enables completion timeout interface
