5.2.1.3. Bursting Slave Mode

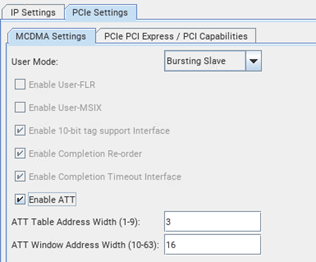

Figure 7. Root Port Bursting Slave Paramters
Table 39.  Root Port Bursting Slave Parameters
Parameter Value Default Value Description
Enable Configuration Intercept Interface On / Off Off

Select to enable user configuration intercept interface.
Enable HIP Reconfiguration Interface On / Off Off

Select to enable Hard IP reconfiguration interface.
Enable 10-bit tag support interface On On

Enables 10-bit tag support interface
Enable Completion Re-order On On

Enables completion re-order
Enable Completion Timeout Interface On On

Enables completion timeout interface
Enable ATT On / Off Off

Enables Address Translation Table for BAS.
ATT Table Address Width 1 - 9 3 Sets depth of ATT. Depth is equal to 2 to the power of number entered.
ATT Window Address Width 10 - 63 16 Sets the number of BAS address bits to be used directly.

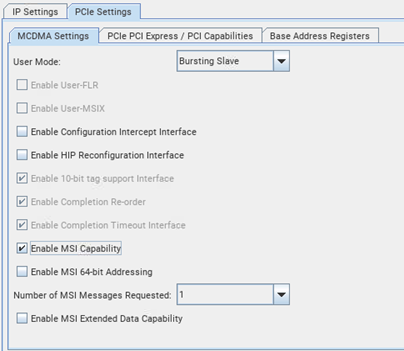

Figure 8. Endpoint Bursting Slave Parameters
Table 40.  Endpoint Bursting Slave Parameters
Parameter Value Default Value Description
Enable Configuration Intercept Interface On / Off Off

Select to enable user configuration intercept interface.
Enable HIP Reconfiguration Interface On / Off Off

Select to enable Hard IP reconfiguration interface.
Enable 10-bit tag support interface On On

Enables 10-bit tag support interface.
Enable Completion Re-order On On

Enables completion re-order.
Enable Completion Timeout Interface On On

Enables completion timeout interface.
Enable MSI Capability On / Off Off Enables or disables MSI capability.
Note: MSI is supported only in BAS and BAM + BAS modes.
Enable MSI 64-bit Addressing On / Off Off Enables or disables 64-bit MSI addressing.
Number of MSI Messages Requested 1, 2, 4, 8, 16, 32 1 Sets the number of messages that the application can request in the multiple message capable field of the Message Control register.
Enable MSI Extended Data Capability On / Off Off Enables or disables MSI extended data capability.
