5.2.1.2. Bursting Master Mode

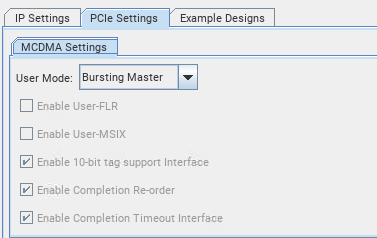

Figure 5. Root Port Bursting Master Mode Parameters

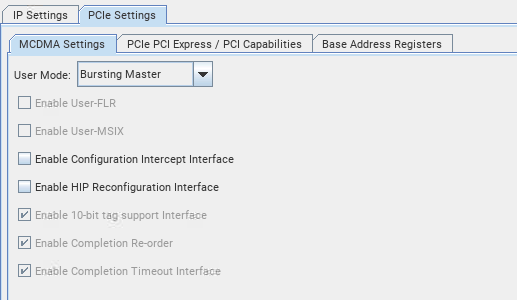

Figure 6. Endpoint Bursting Master Mode Parameters
Table 38.  Bursting Master Mode Parameters
Parameter Value Default Value Description
Enable Configuration Intercept Interface On / Off Off

Select to enable user configuration intercept interface. Applicable to Endpoint only.

Enable HIP Reconfiguration Interface On / Off Off

Select to enable Hard IP reconfiguration interface. Applicable to Endpoint only.

Enable 10-bit tag support interface On On

Enables 10-bit tag support interface.
Enable Completion Re-order On On

Enables completion re-order.
Enable Completion Timeout Interface On On

Enables completion timeout interface.
