5.2.3. Base Address Registers

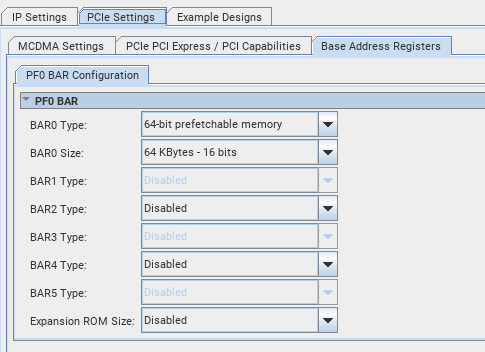

Figure 15. PF BAR Configuration Parameters

The following table shows the BAR and Expansion ROM parameters that can be configured in each user mode.

In Multichannel DMA mode, BAR2 size can be configured through BAR2 Address Width parameter in MCDMA Settings.

In Multichannel DMA, BAM+MCDMA and BAM+BAS+MCDMA modes, BAR0 is allocated to access 4 MB space that internal IP registers are mapped to.

Supported BAR types for user application are as follows:
  • BAR 0/2/4: Disabled, 64-bit prefetchable memory, 64-bit non-prefetchable memory.
  • BAR 1/3/5: Disabled.

If you select a 64-bit type for BAR 0/2/4, then the adjacent BAR 1/3/5 is disabled.

Table 47.  PF BAR Configuration per User Mode [MCDMA, BAM, BAS]Y = This BAR is available to the user application.
PF0 BAR Multichannel DMA Bursting Master Bursting Slave
BAR0

64-bit prefetchable memory

Size: 4 MB - 22 bits

Note: BAR not available to user application.
Y Y
BAR1

Disabled

Note: BAR not available to user application.

Disabled

Disabled
BAR2

64-bit prefetchable memory

Size: 4 MB - 22 bits

Note: BAR not available to user application.
Y Y
BAR3

Disabled

Note: BAR not available to user application.
Disabled Disabled
BAR4

Disabled

Note: BAR not available to user application.
Y Y
BAR5

Disabled

Note: BAR not available to user application.
Disabled Disabled
Expansion ROM Y Y Y
Table 48.  PF BAR Configuration per User Mode [BAM+BAS, BAM+MCDMA, BAM+BAS+MCDMA]Y = This BAR is available to the user application.
PF0 BAR BAM+BAS BAM+MCDMA BAM+BAS+MCDMA
BAR0 Y

64-bit prefetchable memory

Size: 4 MB - 22 bits

Note: BAR not available to user application.

64-bit prefetchable memory

Size: 4 MB - 22 bits

Note: BAR not available to user application.
BAR1

Disabled

Disabled

Note: BAR not available to user application.

Disabled

Note: BAR not available to user application.
BAR2 Y Y Y
BAR3 Disabled Disabled Disabled
BAR4 Y Y Y
BAR5 Disabled Disabled Disabled
Expansion ROM Y Y Y
